IEC 60335-2-3 Feeler Gauge for Unintentional Touch Test Within 13mm
  • name
  • name
  • name
  • name

IEC 60335-2-3 Feeler Gauge for Unintentional Touch Test Within 13mm

MOQ: 1
Price: Customized
Standard Packaging: Carton
Delivery Period: 10 days
Payment Method: T/T
Supply Capacity: 50 Sets Per Month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate (Cost Additional)
Model Number
SN2210-103
Applied Standard:
IEC 60335-2-3
Clause Figure:
22.13 Figure 103
Material:
Stainless Steel
Warranty:
Free Warranty
Highlight:

Unintentional Touch Test Feeler Gauge

,

13mm IEC 60335-2-3 Feeler Gauge

,

Stainless Steel Feeler Gauge

Product Description
IEC 60335-2-3 Feeler Gauge for Unintentional Touch Test Within 13mm

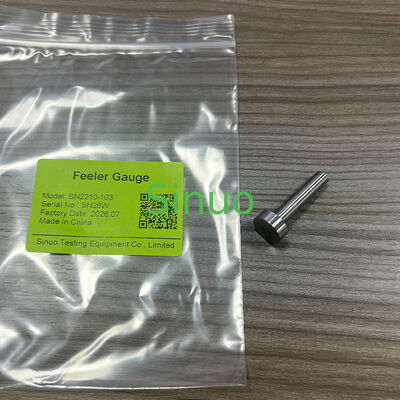

This Simulated Hand Feeler Gauge (Figure 103) is a standard-compliant test accessory matching the simulated-hand probe defined under IEC 60335-2-3 Clause 22.13.
IEC 60335-2-3 Simulated Hand Feeler Gauge
Manufactured from premium stainless-steel material, this gauge cooperates with the IEC Figure 102 simulated-hand tool to identify hazardous zones beside appliance handles.
When end-users grip appliance handles during daily operation, unintended contact with internal live-risk components poses serious electrical-safety threats. Working together with the simulated-hand test probe, this feeler gauge assesses accessible parts located within 13 mm from the handle bottom. It verifies whether dangerous components can be accidentally reached, offering objective test evidence for household-appliance safety evaluation and certification submission.
Key Technical Parameters
  • Applicable Standard: IEC 60335-2-3 Clause 22.13, Figure 103
  • Material: Stainless steel
  • Matching Tool: IEC 60335-2-3 Figure 102 Simulated Hand
  • Test Scope: Detect unintended-touch accessible parts within 13 mm below appliance-handle bottom
  • Test Samples: Handles of household electrical appliances
  • Operation Reference: Follow installation procedures shown in standard Figure 104, Figure 105
Main Features
  • Fully aligned with IEC standard specification: Strictly follows Figure 103 dimensional requirements, delivers repeatable and comparable test results for third-party certification.
  • High-grade stainless-steel build: Anti-corrosion, anti-deformation, keeps stable dimension after long-time repeated lab usage.
  • Perfectly matched with simulated-hand probe: Designed to pair with Figure 102 simulated-hand fixture, completes the full unintentional-touch assessment workflow.
  • Flexible test mode support: Supports both dual-point contact and single-point sequential contact testing as required by standard rules for special-shaped handle undersides.
  • Simple lab-friendly operation: Insert together with simulated-hand gauge into handle openings, no extra complicated setup; test outputs are traceable for compliance reports.
Application & Usage
This feeler gauge is widely used in household-appliance R&D verification, in-house QC inspection and IEC safety certification testing.
Operators insert the Figure 102 simulated-hand probe into the appliance-handle opening, then apply this Figure 103 feeler gauge according to Figure 104 / Figure 105. It checks risky parts within 13 mm from the bottom surface of the simulated hand.
If the underside profile of the handle blocks simultaneous contact of point A and point B on the simulated-hand tool, carry out tests sequentially with one contact point at a time as permitted by the handle opening.
This set-up reveals hidden accidental-touch risks, guides manufacturers to optimize handle-structure design, eliminates potential electric-shock hazards and helps household appliances meet international safety-access requirements.
IEC 60335-2-3 Feeler Gauge Application Example
