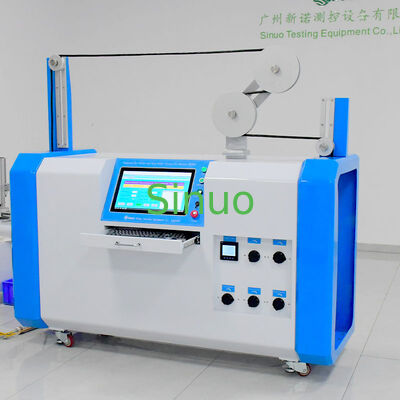

IEC60227-1 450/750V Polyvinyl Chloride Insulated Cables Flexing Test Machine

MOQ: 1
Price: Negotiable
Standard Packaging: Plywood Case
Delivery Period: 30 Days
Payment Method: T/T
Supply Capacity: 5 sets per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate (Cost Additional)
Model Number
SN2302B
Control System:
PLC + Windows System Control
Test Items:
Polyvinyl Chloride Insulated Cables
Load Current:
0.1-35A
Test Stroke:
1 Meter
Number Of Tests:
0-999999
Applicable Wire Core:
2-18
Two-wheel Bending Speed:
0.33m/S, Adjustable
Three-wheel Bending Speed:
0.1m/S, Adjustable
Rated Voltage:
450/750V
Highlight:

Insulated Cables Flexing Test Machine

,

IEC60227-1 Insulated Cables Flexing Test Machine

Product Description
IEC60227-1 450/750V Polyvinyl Chloride Insulated Cables Flexing Test Machine
Product Overview

This specialized testing machine is designed for conducting bending mechanical strength tests on finished flexible cables according to international standards.

Compliance Standards
  • IEC60227-1: clause 6.6.3.2 (IEC 63294:2021, clause 6.6)
  • IEC60227-2: clause 3.1 and figure 1
  • IEC60245-1-2008 clause 5.6.3.1
  • IEC60245-2-1998 clause 3.1 and figure 1, clause 3.5 and figure 6
Specimen Compatibility

Suitable for finished flexible cables including TUV, VDE, UL and other highly flexible cables. Not applicable to cables with more than two concentric layers whose nominal conductor cross-section exceeds 18 cores.

Test Principle

A 5m long sample moves back and forth within a 1m stroke through a pair of pulleys to achieve the bending test of wires and cables. By switching the two- and three-wheel clamps and adjusting the running speed, both two-wheel and three-wheel bending tests can be performed.

Technical Parameters
Control System PLC + Windows system control
Operation Interface Industrial computer of 12 inches or above, color screen, with WIFI, internet connectivity, data reporting and printing capabilities
Test Items
  • No-load test (cables with more than five cores are not subject to current-carrying test)
  • Single-phase cable test
  • Three-phase cable testing
Load Current 0.1-35A
Load Voltage Single-phase AC0-250V, adjustable
Three-phase AC0-430V, adjustable
Test Speed Two-wheel bending speed: 0.33m/S, adjustable
Three-wheel bending speed: 0.1m/S, adjustable
Test Stroke More than 1 meter, fixed stroke
Number of Tests 0-999999, can be preset
Applicable Wire Core 2-18
Applicable Wire Diameter 0.2-4 mm²
Equipment Configuration
Pulley Diameter: Two-pulleys: 60, 80, 120, 160, 200 mm (round bottom)
Three-pulleys: 40, 45, 50 mm (round bottom)
Weights: Two-wheel: According to standard table 1 (0.5-9Kg, stacked combination)
Three-wheel: According to standard table 3 calculated at 28N/mm² (standard 21, 28, 42N)
Fault Detection: Current break, short circuit between conductors, short circuit between sample and pulley, sound and light alarm
Power Supply: AC380V±10%/50-60Hz
Equipment Size: WDH=1600×700×1600mm
Equipment Weight: About 300kg
Equipment Visual Reference
Integrated Two Pulleys and Three Pulley Flexing Fixture Close-up view of flexing test machine components IEC 60227-2-2003 Table 1 application diagram
