IEC60529 IPX3/IPX4/IPX5/IPX6 Oscillating Tube And Jet Nozzle Test Chamber

MOQ: 1
Price: Customized
Standard Packaging: Plywood
Delivery Period: 30 Days
Payment Method: T/T
Supply Capacity: 10 Sets Per Month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate (Cost Additional)
Model Number
SN4416-1400L
Inner Size:
1400mm*1400mm*1400mm
Overall Size:
1880mm*4200mm*2200mm
Turntable Speed:
1-5r/min
Sample Bearing:
≤20KG
Oscillation Tube:
Customizable
Spray Angle:
±160°
Control And Operation:
PLC And Touch Screen
Applied Standard:
IEC60529-2013 Etc.
Highlight:

Jet Nozzle Test Chamber

,

IPX6 Oscillating Tube Jet Nozzle Test Chamber

,

Oscillating Tube Jet Nozzle Test Chamber

Product Description
IEC60529 IPX3/IPX4/IPX5/IPX6 Oscillating Tube And Jet Nozzle Test Chamber
The IEC60529 IPX3/IPX4/IPX5/IPX6 Oscillating Tube and Jet Nozzle Test Chamber is designed for comprehensive waterproof testing of electronic and electrical products according to international standards.
Equipment Overview
Natural water exposure (rain, sea, river water) causes significant damage to products and materials annually, including corrosion, fading, deformation, strength reduction, expansion, and mildew. Electrical products are particularly vulnerable to short circuits and fire hazards from water exposure. Therefore, enclosure protection water testing is essential for product reliability and safety.
Application Areas
  • Outdoor lighting systems
  • Household appliances
  • Automotive components
  • Electronic and electrical products
Equipment Function
This equipment tests the physical properties and performance of electronic and electrical products, lighting fixtures, electrical cabinets, automotive components, and related parts under simulated climatic conditions. Test results verify whether product performance meets required standards for design improvement, validation, and quality control.
Compliance Standards
IEC60529:1989 +A1:1999 +A2:2013 "Degrees of protection provided by enclosures (IP Code)" for IPX3, IPX4, IPX5, and IPX6 testing according to figures 4 and 6.
Equipment Features
  • Suitable for IPX3, IPX4, IPX5, and IPX6 waterproof rating tests
  • High-quality steel outer casing with baked enamel finish for durability
  • SUS304 stainless steel inner chamber and turntable for corrosion resistance
  • Transparent observation window with internal LED lighting for test monitoring
  • IPX3/4: Configured with R200mm, R400mm, and R600mm oscillating tubes per IEC60529 figure 4 specifications
  • IPX5/6: Configured with spray nozzle per IEC60529 figure 6 specifications
  • High-quality stepper motor for turntable drive with automatic forward/reverse rotation control
  • Programmable test duration: 0-999 minutes via touch screen interface
  • 7-inch touch screen + PLC control system with Omron electrical components
  • Internal waterproof socket for sample power supply during testing
  • Comprehensive safety protections: leakage protection, water shortage protection, short circuit protection
Technical Specifications
Technical Parameters Basic Parameters
Inner Chamber Size L1400×W1400×H1400mm
Outer Chamber Size L1880×W4200×H2200mm
Allowed Product Dimensions Length and width ≤1000mm, height ≤100mm
Turntable Diameter ￠200mm and 600mm
Turntable Maximum Load ≤20KG
Turntable Speed 1-5r/min (adjustable)
Turntable Rotation Always positive / positive and negative alternate
Flow Adjustment Manual adjustment via flow meter
Test Time 0-999 minutes
Sample Power Supply Internal waterproof socket for sample power during testing
Water Supply Built-in 90L water tank with recycling capability
Total Weight Approximately 450kg
Required Space 4.4m(D)×2.2m(W)×2.4m(H)
IPX3/4 Oscillating Tubes Specifications
Oscillation Tube R200mm, R400mm, and R600mm
Nozzle-Sample Distance Within 200mm
Spray Aperture Spacing 50mm
Oscillating Tube Swing Angle ±60° (IPX3), approximately ±160° (IPX4)
Angle Between Two Holes 120° (IPX3), 180° (IPX4)
Needle Hole φ0.4mm
Oscillating Speed IPX3: 15 times/min; IPX4: 5 times/min
Water Flow per Hole 0.07 L/min +5%
Spray Pressure 80-150Kpa
Note: Standard requires IPX3: 120°; IPX4: almost 360°. Due to turntable placement, 360° cannot be achieved during actual testing. Without turntable, 360° can be achieved.
IPX5/6 Jet Nozzle Specifications
IPX5 Nozzle Jet Aperture 6.3mm
IPX6 Nozzle Jet Aperture 12.5mm
IPX5 Jet Flow 12.5±0.625 L/min
IPX6 Jet Flow 100±5 L/min
Water Pressure Adjusted according to specified water flow
Jet Distance 2.5M (nozzle from turntable center)
Nozzle Fixing Method Mechanical fixing
Electrical Parameters
Power Supply 380V, 50Hz
Equipment Power 5.0KW
Safety Protection Leakage protection, water shortage protection, short circuit protection
Installation Requirements
Use of Space
  • Level ground with proper drainage
  • Waterproof flooring and walls
  • Ground bearing capacity ≥200kg/m²
  • Well-ventilated area
  • No strong vibration or electromagnetic fields
  • No flammable, explosive, corrosive substances or dust
  • Maintenance space: 800mm rear, left, right, top; 1400mm front
Environmental Conditions
  • Temperature: 5℃～35℃
  • Relative humidity: ≤85%
  • Air pressure: 86kPa～106kPa
Power Supply Requirements
  • Voltage/Frequency: AC400V; 50Hz; three-phase four-wire + protective ground
  • Power: 5.0kW
  • Protective grounding resistance: <4Ω
  • Dedicated leakage protection air switch within 2 meters
  • No knife switches or power sockets permitted
Water Source Requirements
  • Water pressure ≥0.2Mpa with 4-point faucet
  • Faucet position within 2 meters of equipment
  • DN15 water pipe type (adapter required if different)
IPX5-6 Water Test Display

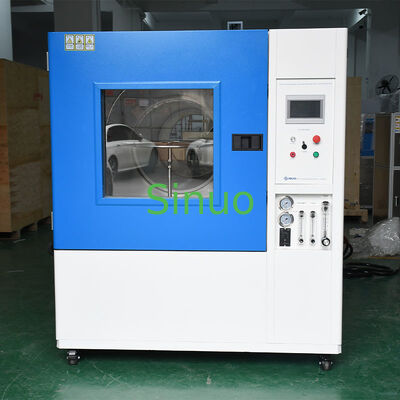

IPX5-6 water test chamber operational display IPX5-6 water test chamber close-up view
