TZS 683:2022 Clause 10.7 Non-Metallic Handles Thermal Insulation Test Apparatus

Basic Properties
Place of Origin: China
Brand Name: Sinuo
Certification: Calibration Certificate (Cost Additional)
Model Number: SN1612
Trading Properties
Minimum Order Quantity: 1
Price: Negotiable
Payment Terms: T/T
Supply Ability: 10 per month
Tags

electrical test equipment

electrical appliance tester

IEC test equipment
Specifications
Test Station: Single Station Control Method: PLC Control
Platform size: 400mm*400mm Temperature channel: 4 Channels
Heating temperature: Rt~ 100 °C Test time: 0-99H99M99S
High Light:

Non-Metallic Handles Thermal Insulator

,

Electrical Testing Insulation Apparatus

,

TZS 683 Clause 10.7 Test Equipment
Product Description
TZS 683:2022 Clause 10.7 Non-Metallic Handles Thermal Insulation Test Apparatus
This equipment complies with the test standard requirements of Clause 10.7 according to TZS 683:2022 and Clause 14.8 according to ES 573:2021.
Testing Procedure
  1. The utensil shall be filled with water at 23°C + 2°C up to 90% of its nominated capacity, and the lid (if provided) placed in position.
  2. The water shall be heated using an electric heating coil immersed in the water, so as to reach boiling point within 15 minutes to 20 minutes.
  3. The temperature of the handle shall be measured not less than 15 minutes after the water starts to boil, by means of thermocouples fixed to points A and B indicated in figure 1.
  4. The temperature shall be recorded and compared with those specified.
Diagram showing thermocouple placement points A and B for handle temperature measurement
Figure 1: Thermocouple placement diagram
Technical Specifications
Parameter Specification
Control PLC control, 7" touch screen operation
Station Single station
Platform size 400mm × 400mm
Temperature recording channel 4 channels (A point, B point, Ambient temperature, Reserve)
Heating temperature Rt ~ 100°C
Temperature measuring method By means of thermocouples fixed to points A and B indicated in figure 1
Test time 0-99H99M99S, can be preset on touch screen
Electric heating coil Electric heating coil material: copper. The electric heating coil can be immersed in water. The electric heating coil on/off will be controlled to be capable of heating water till boiling through duration time from 15 min to 20min
Temperature recording Touch screen display, Temperature and time can be displayed
Power supply AC220V, 50Hz, 3kW

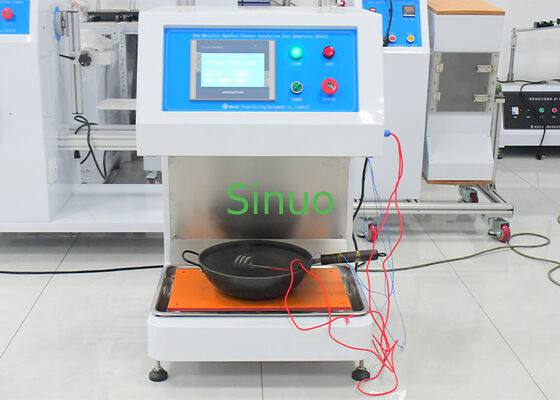

Front view of the thermal insulation test apparatus showing control panel and test platform
Front view of test apparatus
Side view of the thermal insulation test apparatus showing construction details
Side view of test apparatus
Close-up view of the test platform and heating coil arrangement
