IEC62196-1 Charging Gun Mechanical Strength Flexing Testing Apparatus

Basic Properties
Place of Origin: China
Brand Name: Sinuo
Certification: Calibration Certificate(Cost Additional)
Model Number: SNQC1009
Trading Properties
Minimum Order Quantity: 1
Price: Customized
Payment Terms: T/T
Supply Ability: 10 sets per month
Tags

automotive test equipment

car test equipment

automobile testing equipment
Specifications
Test Station: Single Drive Mode: Servo Motor
Flexing Angle: 0-360° Can Be Adjusted Flexing Rate: 0-60 Cycles / Min, Can Be Preset
Flexing Cycles: 0~999999 Can Be Preset, Default 20000 Cycles Load Weights: 20N, 25N, 50N, 75N, 100N, 120N, 140N, 180N
High Light:

IEC62196-1 charging gun testing apparatus

,

charging gun mechanical strength tester

,

electrical appliance flexing testing equipment
Product Description

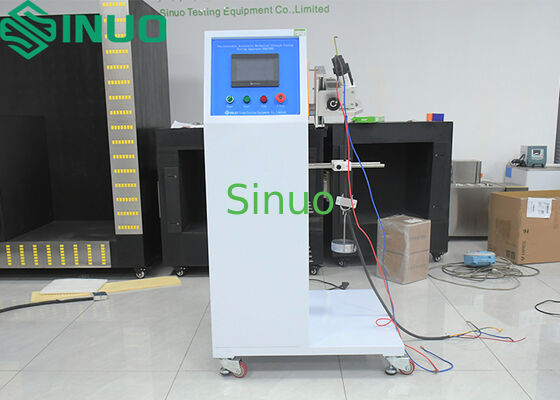

IEC62196-1 Charging Gun Mechanical Strength Flexing Testing Apparatus
Product Overview
This flexibility testing apparatus is engineered and manufactured in compliance with IEC62196-1:2022 clause 26.4 table 14 and IEC60309-1:2012 clause 24.4 figure 9 standards. It is specifically designed for conducting mechanical load flexing tests on vehicle plugs, socket-outlets, and couplers for non-rewireable accessories.
Advanced Control System
The equipment features PLC control with a 7-inch color human-machine interface and utilizes a servo motor for precise flexing angle control. All test parameters including flexing angle, speed, and cycle count can be preset via the touch screen interface. The system automatically executes tests according to configured parameters and provides completion signals when preset cycles are reached.
  • High-precision digital display and measurement
  • Efficient digital frequency conversion
  • Precise speed adjustment capabilities
  • Six-digit memory setting functionality
  • Multi-function modular fixture system
  • Rotating center centering measuring tool
Technical Specifications
Parameter Specification
Test Station Single
Electrical Control Method PLC intelligent integrated control, 7-inch humanized touch interface operation
Drive Mode Servo motor
Sample Clamping Method Mechanical clamping, adjustable clamping point position
Flexing Angle 0-360° freely adjustable (default: 90°, 45° on either side of vertical)
Flexing Rate 0-60 cycles/min, preset capable
Flexing Cycles 0-999,999 preset capable (default: 20,000 cycles)
Load Weights 20N, 25N, 50N, 75N, 100N, 120N, 140N, 180N
Load Power External power source required
Test Judgment Current conduction signal monitoring
Equipment Dimensions & Weight 850mm × 800mm × 1500mm (L×W×H), approximately 300Kg
Power Supply Single phase AC220V±10%, 50/60Hz

IEC62196-1 Charging Gun Mechanical Strength Flexing Testing Apparatus - Industrial testing equipment for vehicle charging connectors
