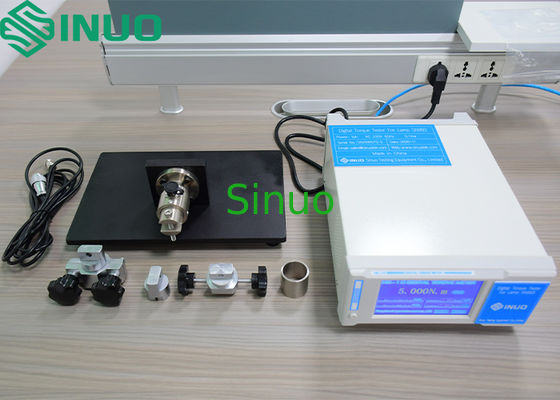

Digital Torque Tester For Lamp Holders With High-Precision LCD Display
| Torque Range: | 0–10 N·m (customizable) | Measuring Accuracy: | ≤1% |
| Repeatability: | ≤0.5% FS | Linear: | ≤0.5% FS |
| Hysteresis: | ≤0.5% FS | Fixtures: | E14, E27, B15, B22 (customizable) |
| High Light: | digital torque tester for lamp holders,high-precision LCD torque tester,lamp holder torque testing equipment |
||
- 5-inch high-definition LCD touch screen display with clear parameter visualization
- Fixture-based lamp cap fixation for direct positive/negative torque measurement
- Adjustable torque test range: 0~10N.m (custom ranges available)
- Customizable lamp cap fixtures for various specifications
- High-reliability strain gauge torque sensor with maximum value retention and alarm functions
- Compliant with international and domestic standard requirements
| Parameter | Value |
|---|---|
| Measuring range | 0-10N*m |
| Measuring accuracy | ≤1% |
| Repeatability | ≤0.5% FS |
| Linear | ≤0.5% FS |
| Hysteresis | ≤0.5% FS |
| Overload capacity | 120% FS |
| Temperature compensation range | -10℃ to 60℃ |
| Rated operating conditions | 25±5℃, ≤65% RH, 220V 60Hz |
| Allowable working conditions | 0-40℃, ≤75% RH, 220V 60Hz |
| Dimensions (W×H×L) | 330mm×110mm×335mm |
| Power consumption | 15VA |
| Fixture Type | Standard Reference |
|---|---|
| E14 | IEC62560 Figure 3 |
| E27 | IEC62560 Figure 3 |
| B15 | IEC62560 Figure 4 |
| B22 | IEC62560 Figure 4 |
