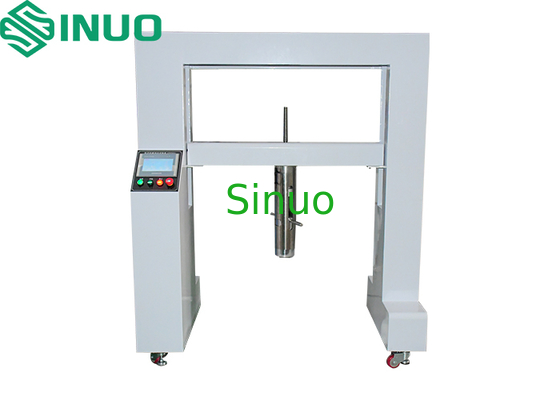

Advanced Impact Strength Tester for Top-Loading Washing Machines
  • name
  • name
  • name

Advanced Impact Strength Tester for Top-Loading Washing Machines

MOQ: 1
Price: Customized
Standard Packaging: Plywood Case
Delivery Period: 30 Days
Payment Method: T/T
Supply Capacity: 10 sets per month
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate(Cost Additional )
Model Number
SN1401
Sample Size:
WDH ≤ 800 × 1000 × (500–1000) Mm
Test Station:
Single Station
Release Method:
Electromagnet Release
Rubber Hemisphere:
Diameter 70 Mm, Hardness 40–50 IRHD
Impact Weight:
20 Kg
Drop Height:
100 Mm
Impact Energy:
20 J
Test Cycles:
3 Times
Product Description



Advanced Impact Strength Tester for Top-Loading Washing Machines





Product information:



This device is Used to test the impact resistance mechanical strength of the top lids of appliances such as centrifugal dehydrators and washing machines that are loaded from the top.It is designed and manufactured according to IEC 60335-2-7:2008 clause 21.101.1, IEC 60335-2-4 clause 21.101.



Test Principle:



The device uses an electromagnet to hold a 20 kg impact hammer. The hammer head is made of rubber with a diameter of 70 mm and a hardness of 40–50 IRHD. It is released from a height of 100 mm above the center of the lid. The hammer falls freely and impacts the lid with an energy of 20 J. After three impacts, the lid is inspected to determine whether any damage allows access to moving parts.



Technical parameters:



Control & Operation Electromagnetic release, electric lifting
Test Item Washing machine top cover impact test
Allowable Sample Size WDH ≤ 800 × 1000 × (500–1000) mm
Test Station Single station
Impact Element Release Method Electromagnet release
Rubber Hemisphere Diameter 70 mm, hardness 40–50 IRHD
Impact Element Weight 20 kg
Drop Height 100 mm
Equivalent Impact Energy 20 J
Number of Test Cycles 3 times
Power supply AC220V ±10% / 50–60 Hz

Advanced Impact Strength Tester for Top-Loading Washing Machines 0
