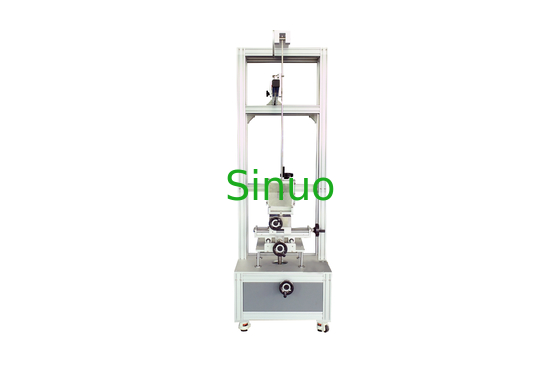

Low-Energy Pendulum Impact Tester IEC 60898 for Circuit Breaker & Socket Test

MOQ:	1
Price:	Customized
Standard Packaging:	Plywood Case
Delivery Period:	30 Days
Payment Method:	T/T
Supply Capacity:	10 set per month

Details Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Sinuo

Certification

Calibration Certificate (Cost Additional)

Model Number

SN2507

Applied Standard:

IEC60898-1

Impact Mass:

150±1g(200g)

Mounting Bracket Mass:

10±1Kg

Mounting Bracket Size:

175*175*8 Mm

Sample Range:

Panel/rail/recessed/panel Mount Type

Impact Head:

R10 Polyamide, Hardness HR100

Mounting Brackets:

Can Rotate ±90°

Position Regulation:

100～100mm Adjustable

Highlight:

IEC 60898 Pendulum Impact Tester

Low-Energy Pendulum Impact Tester

Circuit Breaker Pendulum Impact Tester

Product Description

Low-Energy Pendulum Impact Tester IEC 60898 for Circuit Breaker & Socket Test

Product Overview:

This Low-Energy Pendulum Impact Test Equipment is designed to perform mechanical impact resistance tests in compliance with IEC 61009-1:2012 and IEC 60898-1:2015 standards. It is applicable to switch sockets, panel-mounted and rail-mounted circuit breakers, contactors, installation boxes, and other electrical devices that may be subjected to mechanical stress during normal use.

Using a 1-meter pendulum principle (test Eha), the impact hammer is released from a defined height, delivering a precise impact to the test sample through gravitational energy conversion. This simulates real-world mechanical shocks to assess the durability and structural safety of exposed parts.

Key Features:

Standard Compliance: IEC 61009-1:2012, IEC 60898-1:2015
No Installation Required: Floor-standing design, ready to use
Flexible Mounting Bracket: Fully adjustable in X, Y, Z directions (±100 mm), and capable of ±90° rotation around both horizontal and vertical axes
Targeted Impact Testing: Release angle can be adjusted to hit front or side surfaces of the sample
Versatile Sample Support: Compatible with panel mount, rail mount, and recessed mount circuit breakers

Technical parameters:

Model	SN2507
Applicable Sample Range	Panel mount, rail mount, recessed, panel mount circuit breaker
Impact element head	R10 polyamide, hardness HR100
Impact element mass (equivalent mass)	150±1g(200g)
Mounting Bracket quality	10±1Kg
Mounting brackets	Can rotate ±90° around the mounting plate, the mounting plate can rotate ±90° around the vertical axis, X, Y, Z three axes can be adjusted
Position regulation	Bracket X-100～100mm, Y-100～100mm, Z-100～100mm stroke adjustable
Swing pendulum	A steel pendulum with a length of 1000±1mm, a mass of 100±1g, a material outer diameter of 9 mm, and a wall thickness of 0.5 mm
Impact height	0-500mm, scale display (corresponding angle conversion)
Circuit breaker mounting plate	1751758 laminated board
Specimen fixture	Non-enclosed circuit breaker mounting fixture Panel mount circuit breaker mounting clamps
Dimension	860mm×650mm×2000mm
Weight	About 140 KG

Height of Fall:

Energy /J	0.14	0.2		(0.3)	0.35	(0.4)	0.5		0.7	1	2	5	10	20	50
Equivalent Mass /kg	0.25	(0.2)	0.25	(0.2)	0.25	(0.2)	(0.2)	0.25	0.25	0.25	0.5	1.7	5	5	10
Height of Fall ±1%mm	56	(100)	80	(150)	140	(200)	(250)	200	280	400	400	300	200	400	500
Note 1, see note 3.2.2; Note 2, the energy unit of this part of the joule (J) is derived from the standard gravity acceleration (g), the whole value of g round: 10m / s2.

Low-Energy Pendulum Impact Tester IEC 60898 for Circuit Breaker & Socket Test 2

Low-Energy Pendulum Impact Tester IEC 60898 for Circuit Breaker & Socket Test 3

Low-Energy Pendulum Impact Tester IEC 60898 for Circuit Breaker & Socket Test 4
