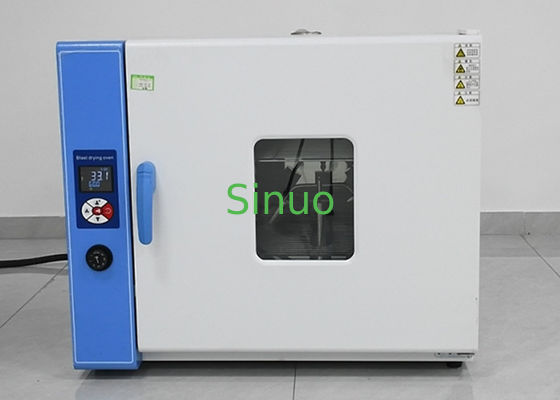

IEC 60898-1 Heating Cabinet For Circuit Breaker Heat Resistance Test
| Applied Standard: | IEC 60898-1 9.14 & 9.16 | Inner Material: | Mirror Surface Stainless Steel |
| Input Power: | 2050W | Temperature Range: | RT+10~300℃ |
| Cabinet Volume: | 136L | Temperature Resolution: | 0.1°C |
| Temperature Fluctuation: | ±1.0℃ | Temperature Uniformity: | ±3% |
| High Light: | emc test systems,emc testing laboratory |
||
IEC 60898-1 Heating Cabinet for Circuit Breaker Heat Resistance Test
Standards & Clauses:
It is required by IEC 60898-1:2015 clause 9.14 and 9.16, IEC 61009-1, etc.
This equipment has the characteristics of rapid heating, precise temperature control, adjustable air volume and so on. It has eight core technologies: microcomputer control, over-temperature alarm, internal circulation blast, multi-purpose machine, stainless steel inner tank, thick insulation layer, multi-capacity, constant temperature timing.
Application fields: Chinese herbal medicine drying, circuit aging test, glassware drying, chemical and pharmaceutical, food drying, equipment drying, etc.
Structure: digital control, over-temperature deviation protection. Mirror surface stainless steel liner, the distance between the partitions in the cabinet can be adjusted, and the outer cabinet is made of high-quality steel plate, tempered glass door, more secure to use.
Technical Parameters:
| Volume | 136L |
| Inner Material | Mirror surface stainless steel |
| Shelf | 2 pieces |
| Input Power | 2050W |
| Power supply voltage | Single phase AC220V, 50/60Hz |
| Inner box size | WxDxH 550x450x550mm |
| Outer box size | WxDxH 840x580x730mm |
| Temperature Range | RT+10~300℃ |
| Constant Temperature Fluctuation | ±1.0℃ |
| Temperature Resolution | 0.1°C |
| Temperature Uniformity | ±3% (test point is 100°C) |
| Working environment temperature | +5~40℃ |
| Timing range | 0~9999min |
| Loading capacity | Max.50kgs. |
