MOQ: | 1 |
Price: | Customized |
Standard Packaging: | Plywood Case |
Delivery Period: | 30 Days |
Payment Method: | T/T |
Supply Capacity: | 10 sets per month |

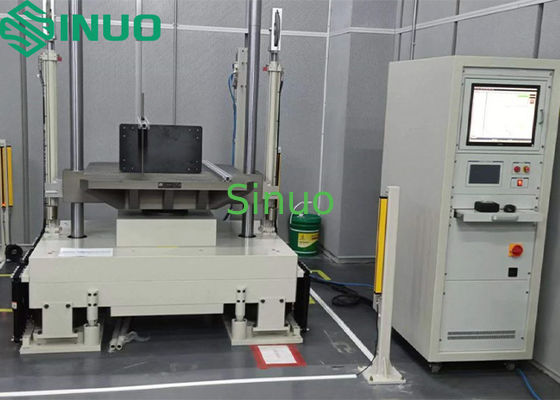

Battery Mechanical Shock Test System Half-Sine Sawtooth Square Wave Shock Tests
Product Information:
This mechanical shock tester is mainly suitable for shock resistance tests in the fields of electronic products, aerospace, shipbuilding, defense sectors, automotive parts, transportation, etc.
By selecting different waveform generators, half-sine wave, post-peak sawtooth wave or square wave Shock tests can be performed.
The system meets industry testing standards such as GB/T2423-2008, GJB150, IEC-68-2-27, and U.S. industrial reliability standards like MIL-STD-202F, MIL-STD-810F, and MIL-STD-883E. (Note: MIL standards refer to widely adopted reliability protocols.
Main Performance:
1. This equipment adopts hydraulic lifting and high-pressure oil brake free-fall shock machine.
2. This equipment adopts gas-liquid pressurization and strong friction brake to prevent secondary shock braking.
3. Shock measuring instrument: single-channel data acquisition. It can simultaneously perform acceleration data measurement, storage, report printing, data callback, database management and other functions of two channels.
4. This equipment adopts rubber module to generate a wide range of half-sine wave pulses of any action time.
5. This equipment can be used for equivalent drop test of packaging boxes.
Technical Parameter:
Shock machine main parameters | |
Working platform | 1000×1000 mm |
Maximum load | 200KG |
Peak acceleration |
Half sine wave 10--400G Post-peak sawtooth wave: 15-100G (need to be purchased) Trapezoidal wave: 15-60G (need to be purchased) |
Pulse duration |
Half sine wave: 3-30 ms Post-peak sawtooth wave: 6-18 ms (need to be purchased) Trapezoidal wave: 6-30 ms (need to be purchased) |
Acceleration tolerance | ≤10% |
Speed change | ≤10% |
Table surface lateral ratio | ≤10% |
Equipment size | 1780×1470×2450mm |
Total equipment volume | 5500 kg |
Measurement system | |
Input channels | 2 channels, support direct access of voltage and IEPE signals |
Sampling frequency | Up to 1MHz |
Pulse duration | 0.1—100ms |
Maximum acceleration | 10000G |
Communication interface | USB2.0 |
Voltage range | -10VPEAK~+10 VPEAK |
Supported standards | ISO, IEC, national and industrial specifications, user-defined |
Operating system | Microsoft Windows 10 |
Analysis function | Shock measurement analysis, shock response spectrum analysis, pulse analysis, shock damage boundary analysis, auxiliary force deformation, shock response time domain calculation, FFT analysis, etc. |
System accelerometer | |
Model | C02A01 |
Output mode | Charge Type |
Sensitivity | 3.93pC/g |
Frequency range | 0.5---12KHz |
Acceleration range | ±2500G |
Working environment | -40~+160℃ |
Other notes | |
Power supply | AC3phase 380V±10%5KVA |
Compressed air | 0.5-0.8Mpa |
Temperature | RT~40℃ |
Humidity | 25℃<85RH% |
Safety |
Average failure-free rate ≥ 5000 hours; The half-sine waveform generator is used continuously for no less than 8000 times. The storage time in a clean, normal temperature environment is no less than 5 years. |
Applicable standards | GB2423.5,GJB150.18,GJB360.23,IEC68-2-27, MIL—STD202F,MIL-STD810B,GB/T18287, etc. |
Verification standards | JG541-2005 |
Equipment performance introduction:
1. Working platform
Adopt high-strength imported aluminum alloy working platform.
2. Lifting mechanism
Adopt hydraulic lifting system.
3. Lifting height control
The lifting height is measured by the photoelectric encoder assembly installed on the base. Photoelectric encoder measurement has the advantages of high precision, strong anti-interference ability and high reliability. It ensures the repeatability of shock.
4. Braking system
Adopts pneumatic braking. The strong friction brake and anti-secondary shock braking function can brake quickly and reliably. Prevent secondary rebound.
5. Buffer system
It consists of a base, a damper, and an airbag. The vibration reduction system can reduce the shock force transmitted from the working platform to the ground.
6. Waveform generator
Half-sine wave: realize different impulse pulse widths 1-30ms;
Square wave: composed of special cylinder and pressure regulating valve;
Post-peak sawtooth wave: composed of special mold, furnace and lead block.
7. Safety device
Emergency stop switch: It cuts off the circuit in emergency situations such as forced disconnection of the contact welding of the action mechanism.
Measurement System Features:
Complies with MIL-STD-810, GJB-150-18-86, IEC68-2-27
Maximum sampling frequency up to 1MHz
Maximum test acceleration 100,000gn
Minimum test pulse width 0.1ms
Multi-frame waveform recording and playback
Support internal and external triggering
Analysis Functions:
1. Shock waveform transient capture
Transient capture helps you get single or multiple pulses. The system automatically analyzes the peak value, pulse width, velocity change, head injury index HIC and other data of the shock pulse. Automatically match the captured pulse waveform to the ideal waveform and compare the deviation between the two.
2. Shock response spectrum analysis
Shock response spectrum analysis can evaluate the potential damage caused by the impact. Provide a basis for designing the impact resistance of products. The system performs SRS analysis on each shock pulse and compares the deviation between the actual SRS and the target SRS.
3. Other analyses
Force deformation analysis, shock response demonstration, rotation shock analysis and other necessary analyses in shock tests. Force deformation analysis calculates the force peak, deformation peak, energy, efficiency, etc. generated by the pulse. Shock response demonstration provides tools for learning shock response spectrum. Rotation shock analysis is used for rotary shock machines or other rotary control events. The signal is calculated by axial acceleration measurement.
![]() |
