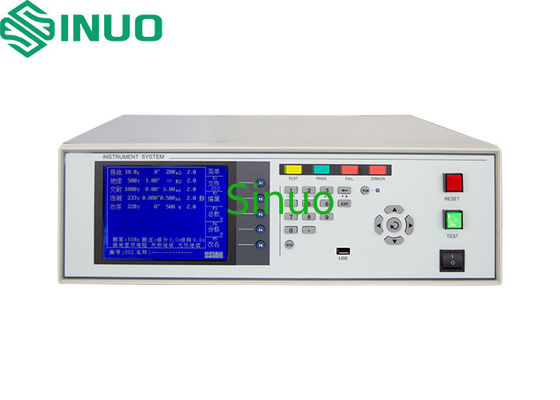

IEC60335-1 Precision Ground Bond Tester Output Current Range 2-40A
| Output Range: | 2.0–40.0 A | Current Accuracy: | ±(1.5% Of Setting + 5 Digits) |
| Resistance Range: | 10–600 MΩ | Measurement Accuracy: | ±(1.5% Of Reading + 5 Digits) |
| Test Time: | 0, 0.5–999.9s (0 = Continuous Output) | Time Resolution: | 0.1s |
| High Light: | IEC60335-1 Ground Bond Tester,40A Ground Bond Tester,Precision Ground Bond Tester |
||
IEC60335-1 Precision Ground Bond Tester Output Current Range 2-40A
Product information:
The Precision Ground Bond Tester offer a variety of combined testing functions with advantages such as high accuracy and high-speed testing. Customized solutions can be provided according to user requirements to meet electrical safety testing standards across various specialized industries.
Product Features:
- 5.7’ blue background LCD screen, clear and intuitive display.
- Complies with major electrical safety standards such as CCC, IEC, EN, VDE, BS, GS, UL.
- Supports up to 200 sets of test condition memory, each group with 8 testing steps, each with customizable specifications for easy recall.
- High-speed testing enabled by ARM-based high-performance processor for faster data processing.
- High accuracy, with safety test precision reaching ±1.5%.
- Digitally controlled closed-loop feedback system for automatic voltage regulation and output correction, unaffected by power grid fluctuations, ensuring accuracy.
- Ground bond testing supports both voltage and resistance judgment modes to comply with various national/industry standards.
- Optional industrial computer system: when configured with a barcode scanner, it supports scan-to-start testing, test group selection, barcode–test data linkage, local data storage, and data management, analysis, and upload.
- USB port available for easy data import/export.
Technical Parameters:
| Model | SN9613H | |
| Function Configuration | USB | |
| Ground Bond Test | ||
| Output Current Range | 2.0–40.0 A | |
| Current Accuracy | ±(1.5% of setting + 5 digits) | |
| Resistance Measurement Range | 10–600 mΩ | |
| Measurement Accuracy | ±(1.5% of reading + 5 digits) | |
| Upper Limit Alarm Ranges | 5～10A | 10～600mΩ |
| 11～25A | 10～300mΩ | |
| 26～32A | 10～200mΩ | |
| Lower Limit Alarm Range | 0–600 mΩ | |
| Setting Resolution | 1 mΩ | |
| Test Time | 0, 0.5–999.9s (0 = continuous output) | |
| Time Resolution | 0.1s | |
| Supporting specifications | ||
| Communication Interfaces | RS232 (standard), RS485 (optional) | |
| External Control | PLC interface, Switching signal | |
| Data Storage | USB flash storage | |
| Dimensions (W×H×D) | 435 × 150 × 550 mm | |
| Standard Accessories |
Power cable ×1 32A test clamp ×1 Test box ×1 Test power input cable ×1 Fuse ×1 User manual ×1 |
|
| Optional Accessories |
Alarm light Foot switch |
|
