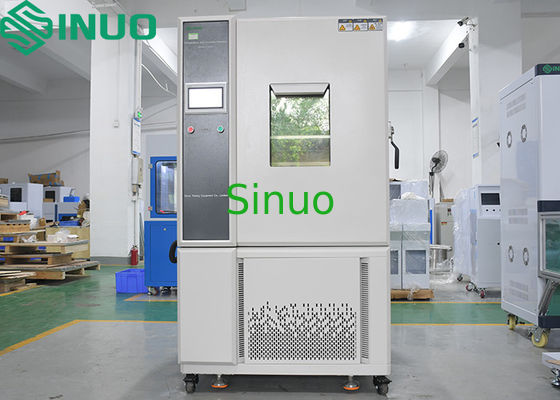

-70℃ To +150℃ Temperature And Humidity Test Chamber IEC62133 For Battery Test

MOQ:	1
Price:	Customized
Standard Packaging:	Plywood Case
Delivery Period:	30 Days
Payment Method:	T/T
Supply Capacity:	10 sets per month

Details Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Sinuo

Certification

Calibration Certificate(Cost Additional )

Model Number

SN559-1000L

Temperature Range:

-70℃ To +150℃

Temperature Fluctuation:

±0.5℃

Humidity Range:

(20～98)% RH

Humidity Fluctuation:

≤2.5%

Heating Rate:

-70℃ To +150℃ ≥5℃/min

Cooling Rate:

+150℃ To -70℃ ≥5℃/min

Highlight:

IEC62133 Temperature Humidity Test Chamber

Battery Test Temperature Humidity Test Chamber

150℃ Temperature Humidity Test Chamber

Product Description

-70℃ to +150℃ Temperature and Humidity Test Chamber IEC62133 For Battery Test

Product information:

The Temperature and Humidity Test Chamber designed for reliability testing of electronics, electrical components, plastics, and other materials. It complies with international standards such as IEC62133, UN38.3, and IEC60068-2-2:2007. With a temperature range of -70°C to +150°C and humidity control from 20% to 98% RH, it ensures precise simulation of extreme environmental conditions for product validation.

Technical parameters:

Product Model	SN559-1000L
Nominal Volume	1000L
Internal Dimensions	W1000H1000D1000mm
External Dimensions	W1280H2150D2050MM
Weight	Approximately 580KG
Test Environmental Conditions	Ambient temperature: +25℃, relative humidity ≤ 85%, no samples inside the chamber
Temperature Range	-70℃ to +150℃
Humidity Range	(20～98)% RH (Temperature: 20℃～85℃, refer to the temperature-humidity control range chart, without active heat load)
Temperature Fluctuation	±0.5℃
Humidity Fluctuation	≤2.5%
Temperature Deviation	≤±2.0℃
Humidity Deviation	≤±3%
Heating Rate	-70℃ to +150℃ ≥5℃/min (Average over the entire range)
Cooling Rate	+150℃ to -70℃ ≥5℃/min (Average over the entire range)
Load Condition	None
Operating Noise	A-weighted sound level ≤70 dB(A) (Measurement taken in a soundproof room with minimal echo at an ambient temperature of 25℃. Using A-weighting, the average value is measured at 9 points. Each test point is 1 meter horizontally from the noise source and 1 meter above the ground.)
Structural Features
Thermal Insulation Structure	1.Outer wall material: A3 steel plate with spray coating. 2.Inner wall material: Brushed stainless steel plate SUS#304. 3.Thermal insulation material for the box body: 100mm high-temperature-resistant rigid polyurethane foam. 4.Thermal insulation material for the door: 100mm high-temperature-resistant rigid polyurethane foam.
Bottom Structural Strength	The bottom of the test chamber is designed with track load-bearing capacity: ≤100kg/m² (load).
Air Conditioning Channel	1.Stainless steel long-shaft centrifugal fan: 2 units, 90W. 2. Fan, heater, evaporator (also dehumidifier), drainage device, pressure balance port, adjustable air guide plate, temperature sensor.
Standard Configuration of the Test Chamber	1.Window: 400x600x40mm, 3 layers of vacuum tempered glass. 2.Embedded flat handle. 3.Door hinge: SUS #304 imported hinge. 4.Internal energy-saving light: LED energy-saving light. 5.Lead hole: φ50mm, 1 unit, located on the right side.
Door	1.Single door, opens outward, hinge on the left, handle on the right (when facing the front of the chamber). 2.Equipped with a safety door lock mechanism (the door can be opened from inside the test chamber). The door is equipped with electric anti-condensation heating, and the hollow glass observation window has a viewing area of approximately (W400×H600mm). The door frame is equipped with anti-condensation electric heating.
Control Panel	Controller with 7-inch display, temperature (humidity) control display, operation indicator light, and lighting button.
Mechanical Room	Refrigeration unit, compressor water tray, pressure relief device, heating device.
Power Distribution Cabinet	Power distribution board, cooling fan, main power switch, transformer, intermediate relay, time relay, solid-state relay, AC contactor, circuit breaker.
Heater	1.High-quality custom heating wire set. 2.Heating control mode: SSR (solid-state relay), non-contact periodic pulse width modulation. 3.Heating power: approximately 4KW.
Power Line Hole	Located on the back of the chamber.
