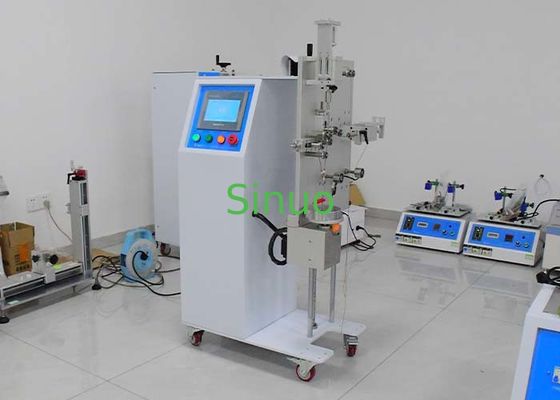

IEC 61851-1 Cable Anchorage Pull Force And Torque Test Apparatus For EV Charging Station Testing

MOQ:	1
Price:	Negotiable
Standard Packaging:	Plywood Case
Delivery Period:	30 Days
Payment Method:	T/T
Supply Capacity:	10 Sets Per Month

Details Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Sinuo

Certification

Calibration Certificate (Cost Additional)

Model Number

SNQC1007B

Operation Method:

PLC Control

Drive Mode:

Electric

Torque Time:

0-99H59M59S

Torque Wheel:

R100mm±0.5mm

Tensile Frequency:

1 Time/s

Pull Cycles:

1-9999 Cycles

Torque Weights:

One Set

Pull Force Weights:

One Set

Highlight:

Cable Anchorage Pull Force Test Apparatus

PLC Cable Pull Force Test Apparatus

Product Description

IEC 61851-1 Cable Anchorage Pull Force And Torque Test Apparatus For EV Charging Station Testing

Product information:

It is designed and manufactured according to IEC 61851-1:2017 clause 11.6.

Sample scope, purpose, principle, structure and use environment
Samples and restrictions	Electric vehicle charging station
Test purpose	Used to test the ability of electric vehicle charging station connection cable accessories to withstand specified tension and torque
Test Principle	The pulling force is realized by using a motor to drive an eccentric wheel mechanism or a screw mechanism. The motor speed is adjustable to ensure that the pulling force is applied accurately each time. The torque is realized by using a motor, a tray, a weight and a time relay.
Structure and characteristics	The weight is used to apply tension, and the weight and the torque arm realize torque. The PLC is used to control the number of tensions and the torque test time. When the number of tests or the test time is reached, the equipment automatically stops. After the test, the maximum allowable displacement of the charging gun connector cable shall not exceed the standard requirement value.
Usage Environment	Power supply: AC220V±10%/50-60Hz, 1KW; working temperature 0-40℃, humidity 30%-90%; Dimensions: about W1600D600H1450mm; weight: about 180kg

Technical parameters:

Test content	Supply plug and/or vehicle plug cable of EV charging station tension test and torque test
Equipment structure schematic diagram	Refer Schematic
Control operation mode	PLC automatic control, touch screen operation
Drive mode	Electric
Pull apply	Meet 160N, 200N, 240N, 250N, 500N specifications, realized by superposition of weights
Torque apply	Meet 0.6N·m, 0.7N·m, 1.4N·m, 2.7N·m, 5.4N·m, 11.0N·m, 16.3N·m specifications,realized by superposition of weights
Torque wheel	R100mm(Ф200mm) ±0.5mm
Tensile frequency	1 time/s, the actual pull time is detected by electrical signal
Pull cycles	1-999999 cycles, can be preset, default is 100±1 cycles
Torque application time	0-99H59M59S,can be preset
Power failure protection	With power-off data storage memory function
Fixture	Universal clamp, one set
Weight matching selection table

IEC 61851-1 Cable Anchorage Pull Force And Torque Test Apparatus For EV Charging Station Testing 2

IEC 61851-1 Cable Anchorage Pull Force And Torque Test Apparatus For EV Charging Station Testing 3

IEC 61851-1 Cable Anchorage Pull Force And Torque Test Apparatus For EV Charging Station Testing 4
