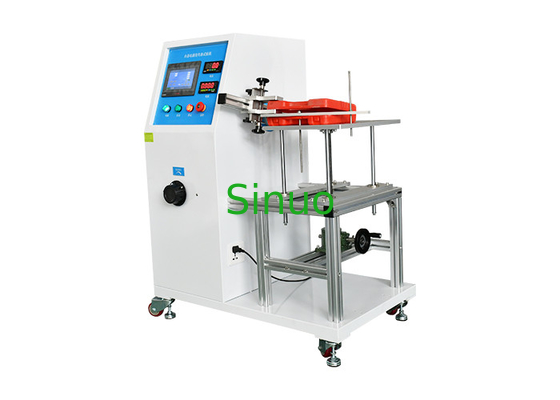

IEC 60335-2-84 Cushion Internal Wire Bending Testing Machine Household Appliance Test
| Control Method: | PLC Control | Test Station: | One Station |
| Drive Mode: | Servo Motor Drive | Flexing Speed: | 0-30 Times/min |
| Bending times: | 0-999999 | Loading Voltage: | 0-250V |
| Flexing Angle: | 0-90° Adjustable | Power supply: | AC220V, 50Hz |
| High Light: | Cushion Internal Wire Bending Testing Machine,IEC 60335-2-84 Bending Testing Machine,Household Appliance Test Bending Testing Machine |
||
IEC 60335-2-84 Cushion Internal Wire Bending Testing Machine Household Appliance Test
Product Information:
Standard: IEC60335-2-84:2005 clause 23.3.
Specimen and Limitations: Toilet with heated seat
Test purpose: Used to test the bending resistance of the internal wires entering the appliance part of toilets with heated seat cushions to verify their reliability.
Test principle: The motor drives the turntable to rotate, driving the heated seat cushion to achieve reciprocating opening and closing (bending) movements at a certain speed and angle. It will automatically stop when the number of times is reached or there is no signal when the soft cord is broken.
Equipment structure: The equipment is driven by a servo motor and has special fixtures that can be set at different angles and speeds to match actual sample testing needs.
Equipment dimensions: approximately: 800×800×1300 (mm) W×H×D, equipment weight: 130kg.
Technical Parameters:
| Input Power | AC220V±10%/50-60Hz, 0.3KW |
| Control Method | PLC control, touch screen operation |
| Station | Single station |
| Drive Mode | Servo motor drive |
| Sample clamping method |
Mechanical clamping, adjustable clamping point position
|
| Flexing Angle | 0-90° optionally adjustable |
| Flexing Speed | 0-30 times/min, variable frequency speed regulation |
| Bending times | 0~999999 can be preset, the default is 10000 times |
| Loading Voltage | Load voltage 0-250V adjustable, current display |
| Sample judgment | Judgment based on the signal given by whether the current is conducting or not |
