IEC 60598-1 Single Station Insertion Strain Force Strain Relief Test Device

Basic Properties
Place of Origin: China
Brand Name: Sinuo
Certification: Calibration Certificate (Cost Additional)
Model Number: SN2107
Trading Properties
Minimum Order Quantity: 1
Price: Customized
Payment Terms: L/C, T/T
Tags

luminaire test equipment

Lighting test equipment

led light meter
Specifications
Test Station: Single Specimen Eccentricity: Distance From The Contact Surface And The Axis Of The Surface:8mm
Balancing Arm: L:50-260mm Weight: 2.5N, Can Achieve 0.25Nm To 0.4Nm Torque Force
Hang Weight: 2.5N Equipped Weight: 2.5N
High Light:

IEC 60598-1 Strain Relief Test Device

,

Single Station Strain Relief Test Device
Product Description

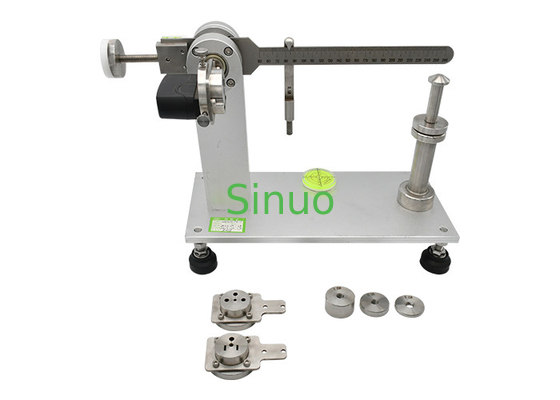

IEC 60598-1 Single Station Insertion Strain Force Strain Relief Test Device



Standards for Strain Relief Test Apparatus:



This testing equipment conforms to IEC60065:2014 clause 15.4.1, IEC 60335-1 clause 22.3 and figure 11,  IEC60065 clause 15.4.1 and figure 11, IEC 60884-1 2013 clause 14.23.2 etc.



Application for Strain Relief Test Apparatus:



The device is used for checking the torque applied to the output socket after the device inserted into the plug fixing the output socket is inserted into the output socket.

The utility model has the advantages of good sensitivity, convenient adjustment, simple operation and beautiful appearance. Equipped with a variety of socket fixture, practicality.



Technical Parameters for Strain Relief Test Apparatus:



Test Station

Single

Specimen Eccentricity

Distance from the contact surface and the Axis of the surface:8mm

Balancing Arm

L:50-260mm

Weight

2.5N, can achieve 0.25Nm to 0.4Nm torque force

Torque Calculation Method

G×L(such as 0.25N.m,use 2.5N weights and 100 mm arm)

Configure

One universal plug (applicable to GB, BS plug), Unicever plug, European standard plug

IEC 60598-1 Single Station Insertion Strain Force Strain Relief Test Device

IEC 60598-1 Single Station Insertion Strain Force Strain Relief Test Device
