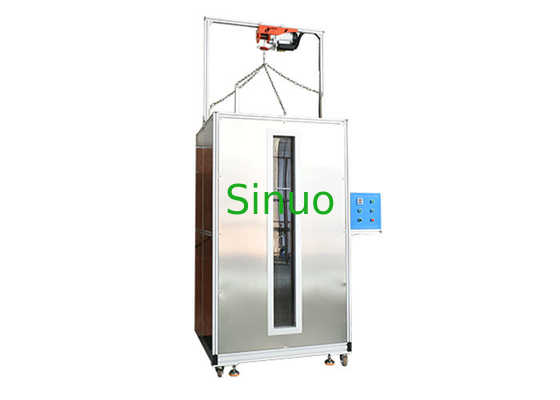

IEC60529 IPX7 Immersion Test Chamber For Factory Inspection
| Chamber external size: | Approximately W 1080* D 1080*H 2300mm (including Casters) | Chamber inner size: | Length 1000* W 1000* H1800mm |
| Max. test water depth: | 1.8m | Observation window: | Tempered Glass (thickness: 12mm) |
| Observation window width: | 200mm | Control method: | Buttons (non-PLC) |
| External chamber material: | Stainless Steel Plates + Aluminum Profile Frame | Inner chamber material: | 2.0mm Thickness Stainless Steel |
| High Light: | IPX7 Immersion Test Chamber,Immersion Test Chamber IEC60529 |
||
IEC60529 High Quality IPX7 Immersion Test Chamber For Factory Inspection Use
Product information:
Standard:IEC60529 degree of protection provided by enclosures (IP Code) of the IPX7, IEC60884-1, IEC60335-1, IEC60598-1.
Application:It is used for the testing of IPX7. Mainly used to test the product waterproof performance in the soaking environment. Through the test, check whether the product waterproof level meet the requirements, for product design, R&D and factory inspection use.
Technical Parameters:
|
Chamber external size |
Approximately W 1080* D 1080*H 2300mm (including casters) |
|
Chamber inner size |
Length 1000* W 1000* H1800mm |
|
Max. test water depth |
1.8m |
|
Observation window |
Tempered glass (thickness: 12mm) |
|
Observation window width |
200mm |
|
Water level adjustment method |
Water inlet / drain valve, manual adjustment |
|
Water level display |
Scale (accuracy 1mm) |
|
External chamber material |
Stainless steel plates + Aluminum profile frame |
|
Inner chamber material |
2.0mm thickness stainless steel |
|
Electric lifting basket |
Made of stainless steel, controlled by electric hoist |
|
Control method |
Buttons (non-PLC) |
|
Test time |
0.01 second-99.99hours can be preset |
|
Immersion depth requirements |
The lowest point of enclosure with a height less than 850 mm is located 1000mm below the surface of the water The highest point of enclosure with a height equal to or greater than 850mm is located 150mm below the surface of the water |
|
Test content |
IPX7 |
|
Power supply |
AC 220V,50Hz, 1KW |
