IEC60529:2013 High Quality IPX3~4 Oscillating Tubes Test System
Product information:

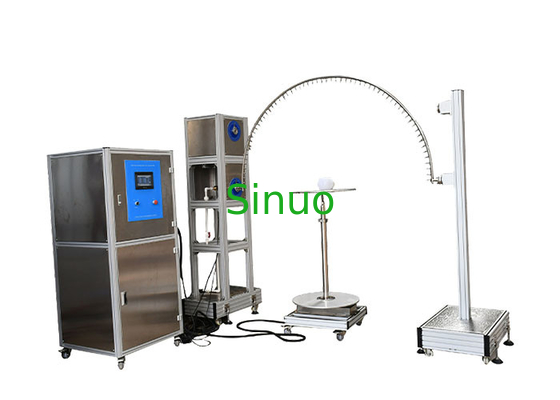

IPX3~4 oscillating tubes test system is designed and manufactured according to IEC60529:2013. It is used for testing the IPX3/IPX4 waterproof level of electrical and electronic products.
The complete set of IPX3~4 oscillating tubes test system is composed of one set of oscillating tubes swing device, one full set of oscillating tubes of R200mm,R400mm, R600mm, R800mm, R1000mm, R1200mm, R1400mm, R1600mm, a turntable, and an intelligent water supply and control cabinet.
The intelligent water supply and control cabinet is composed of a water supply tank, a water pump, and a control system. The test water supply flow is controlled by a PLC, a frequency converter, and a flow meter.
Technical parameters:
No. | Item | parameters |
1 | Water supply | Water flow rate＞10L/min±5% clean water without inclusion. |
2 | The size of the oscillating tube | Coming with R200mm,R400mm, R600mm, R800mm, R1000mm, R1200mm, R1400mm, R1600mm oscillating tubes, made of stainless steel |
3 | Needle hole | Φ0.4mm |
4 | Included angle of two holes | IPX3:120°; IPX4:180° |
5 | Oscillating tube swing angle | Max. ±175° can be preset |
6 | Raining speed | IPX3:4s/time (2×120°); |
7 | Water flow | Can be set according to the size of the oscillating and the number of the pin holes (0.07 L/minX per hole) |
8 | Testing time | 1-99999S can be preset |
9 | Pressure gauge | 0~0.25MPa |
10 | Turntable | Diameter: Φ600mm, rotation speed: 1r/min, bearing capacity: ≤50kgs |
11 | Site requirements | Dedicated IP waterproof test room, the ground should be flat with illumination. |
12 | Electrical control | PLC & touch screen |
13 | Power supply for this equipment | AC 380V, 50Hz, 4KW |
| 14 | Power supply for sample | AC220V, 10A |
