IEC60335-2-9 Customizable Testing Equipment 6mm Steel Disks
| Applied Standards: | IEC60335 And Etc. | Warranty: | One Year |
| Thickness: | 6mm | Vessels Brand: | Sinuo |
| Place of Origin: | Guangdong, China | Model: | SN1131 |
| High Light: | 6mm Steel Disks,IEC60335-2-9 Steel Disks |
||

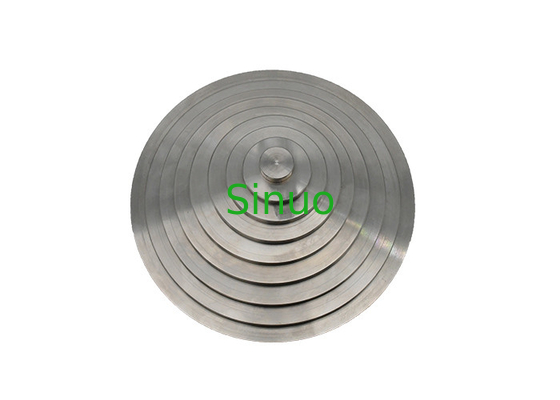

IEC60335-2-9 Customizable Testing Equipment 6mm Steel Disks SN1131
Product information:
The steel disks are according to IEC 60335-2-9 clause 19.103.
The disk has a thickness of 6mm and smallest diameter, rounded up to the nearest centimetre, which allow the appliance to operate.
Φ40mm (another diameter can be customized)The steel disks are according to IEC 60335-2-9 clause 19.103.
The disk has a thickness of 6mm and smallest diameter, rounded up to the nearest centimetre, which allow the appliance to operate.
Φ40mm (another diameter can be customized)
Operation Steps:
Please refer to related standards, here take IEC 60335-2-9 clause 19.103 as example:
Induction hotplates are supplied at rated voltage and operated with a steel disk placed on the centre of the cooking zone. The disk has a thickness of 6 mm and the smallest diameter, rounded up to the nearest centimetre, which allows the appliance to operate.
Notice:
1. The steel disk should be kept properly, do not squeeze, etc., so as not to cause deformation and damage to the steel disk.
2. The steel disk needs to be stored in a dry environment. Please pay attention to moisture and rust prevention. Use anti-rust oil regularly.
