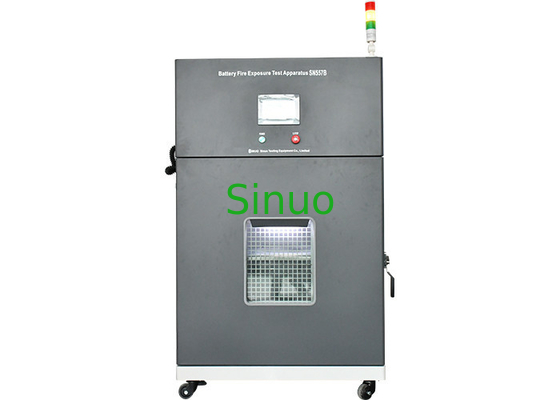

UL 1642 FIG. 20.1 Single Station Lithium Battery Fire Exposure Tester

UL 1642 FIG. 20.1 Single Station Lithium Battery Fire Exposure Tester
UL 1642 FIG. 20.1 Single Station Lithium Battery Fire Exposure Tester

Large Image :  UL 1642 FIG. 20.1 Single Station Lithium Battery Fire Exposure Tester

Product Details:
Place of Origin: China
Brand Name: Sinuo
Certification: Calibration Certificate (Cost Additional)
Model Number: SN557B
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Customized
Packaging Details: Plywood
Delivery Time: 1 Month
Payment Terms: T/T
Supply Ability: 20 Sets Per Month
Detailed Product Description
Applied Standard: UL2054, UL 1642, GB 31241 And Etc. Testing Hole Diameter: 102mm
Testing Bar Diameter: 1/4 Inch (6.4mm) ×12 Inch (305mm) Number Of Station: 1 Station
Burner: Bunsen Burner Flame Height: 10~75±2mm Can Be Adjustable
Fire Ignition Device: Auto Fire Ignition Flame Applicate Time: 99H59M59.9S±0.1s
High Light:

Lithium Battery Fire Exposure Tester

,

Single Station Fire Exposure Tester


UL 1642 FIG. 20.1 Single Station Lithium Battery Fire Exposure Tester

Overview:

This instrument complies with UL2054 Article 22 (Figure 22.1), UL 1642-2009 Article 20 (Figure 20.1), GB 31241-2014 Article 7.9 (Figure E.2).
Battery fire exposure tester is a necessary test equipment for battery manufacturers and quality inspection departments. The equipment is characterized by easy operation, safety and reliability, and high precision. It is the ideal test equipment for battery combustion and ejection test.

Technical Parameters:



1
Sample limits

This test equipment is prohibited from
Testing or storing biological specimens
Testing or storing samples of strong electromagnetic emission sources
Testing or storing samples of radioactive substances
Testing or storage of samples of highly toxic substances
Testing or storing specimens that may produce such substances or objects during testing or storage

2
Number of stations
1 station
3
Burner
Bunsen burner, pipe inner diameter 0.375 inch (9.5mm)
4
Flame Applicate Time
99H59M59.9S±0.1s
5
Flame Height
10~75±2mm can be adjustable
6
Testing Hole Diameter
102mm
7
Fire Ignition Device
Auto fire ignition
8
Schematic diagram of blowtorch and electric fire device

UL 1642 FIG. 20.1 Single Station Lithium Battery Fire Exposure Tester 0

10
Testing Bar Diameter
1/4 inch (6.4mm) ×12 inch (305mm)
11
Test Cover Width
24 inches (610mm) ×12 inch (305mm), octagonal
12
Test Cover Height
12inch (305mm)
13
Testing Aluminum Mesh Diameter
0.010-inch (0.25mm) 16hole×16hole
14
Octagonal stainless steel net cover
Distance between each other 2 feet (610mm), Octagonal net cover height1 feet (305mm)
15
Screen
150×150mm (made of steel wire mesh with 20 holes per foot or steel wire 0.017 inch /0.43mm), Max capacity:5kg
16
Standard drawing of
Eight-sided cover

UL 1642 FIG. 20.1 Single Station Lithium Battery Fire Exposure Tester 1

17
Physical picture for
Eight-sided cover

UL 1642 FIG. 20.1 Single Station Lithium Battery Fire Exposure Tester 2

18
Burning Gas Requirement
High purity liquefied petroleum gas (should be prepared by Customer)
19
Control system
PLC, and a remote controller is offered, whole test procedure fully automatic
20
Display and Operation Method
Touch Screen
21
Video Monitor
Brand
MI
Model
MJSXJ09CM
Size
115*78*78mm
Resolution
1296P(3 megapixel)
Viewing angle
Horizontal 360° Vertical 108°
PTZ control
APP control (Horizontal + Vertical)
Full color night market
Low light full color
Infrared night vision
Support
Two-way voice
Support
Tracking function
Support
Install method
lay flat /upside down /side mounted
Wifi channel
2.4GHz
Storage
Come with 32G microSD card
22
Inter Size
W800XD700XH700 mm
23
Overall Dimension
W1000XD900XH1620 mm
24
Observation Window
430 X 350mm(20mm thickness tempered explosion proof glass), with explosion-proof net
25
Inner chamber Material
SUS304 Stainless steel
25
Outer Chamber Material
Cold rolled powder painted
26
Smoke Extractor
Φ 150mm on back side
27
Bottom
Installed with universal wheels
28
Pressure Relief Port
Test chamber with pressure relief device, when the pressure in the chamber to set up, self-open the pressure relief hole to release the pressure out of the chamber



Features:

PLC and touch screen are used for control and operation.
The exhaust port opens automatically when there is smoke alarm, and the exhaust port closes with delay when there is no smoke.
Ignition unsuccessful alarm and cut off steam source.
Built-in illuminator, through external reflection, to ensure the service life and safety of the illuminator, etc.
High-definition camera and visualization window enable the operator to clearly observe the changes of the measured object in the experiment.
Adopting explosion-proof glass with steel mesh for double protection.
Controlled by remote control, the longest distance can be up to 10 meters.

UL 1642 FIG. 20.1 Single Station Lithium Battery Fire Exposure Tester 3



Test procedures:

Place the test cell on a flat surface and cover it with a lid that has a 4-inch diameter hole in the center. The lid is made of wire mesh or 0.017 in (0.43 mm) wire with 20 holes per foot. An 8-sided, 2-foot (610 mm) wide, 1-foot (305 mm) high screen is placed around the sample. The wire mesh consists of 0.010-inch (0.25-millimeter) wire with 16-18 wires per inch. The sample is placed on the wire mesh, covering the hole in the center of the bench, and then heated until the sample explodes or is destroyed. The safety valve is oriented parallel to the asbestos cloth.
ACCEPTANCE: The exploded cell did not partially penetrate the screen and the cell did not protrude partially or completely through the screen.



UL 1642 FIG. 20.1 Single Station Lithium Battery Fire Exposure Tester 4UL 1642 FIG. 20.1 Single Station Lithium Battery Fire Exposure Tester 5

UL 1642 FIG. 20.1 Single Station Lithium Battery Fire Exposure Tester 6
