| MOQ: | 1 |
| Price: | Customized |
| Standard Packaging: | Plywood |
| Delivery Period: | 30 Days |
| Payment Method: | T/T |
| Supply Capacity: | 10 Sets Per Month |
IEC 60335-1 Clause 22.32 Ceramic Material Fuchsine Spirit Pressure Test Apparatus
Product Information For Ceramic Material Fuchsine Spirit Pressure Test Apparatus:
This ceramic material fushine spirit pressure test machine meets the requirements of IEC 60335-1 clause 22.32. It is use to determine if ceramic material is tightly sintered.

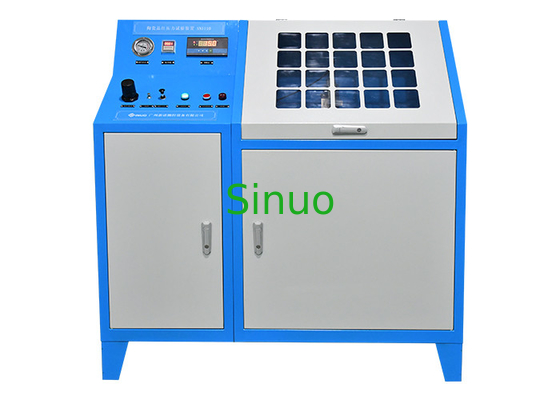

This test machine includes the test container, pressure boosting device and explosion-proof chamber with observation window, the whole operation is easy and safe.
It is use to determine if ceramic material is tightly sintered, consists of two parts: test container and pressure boosting device magenta.
Technical Parameters For Ceramic Material Fuchsine Spirit Pressure Test Apparatus:
| Test container | Volume >100ml, pressure bearing capacity >15mpa, made of stainless steel |
| Power supply | Match client's local power supply |
| Pressure hold time | 0~99s can be set |
| Maximum test pressure | 20mpa |
| Pressurization method | Manual pressurization |
| Test pressure range | 0~20mpa±0.5mpa, can be adjusted |
| Boost rate | 100kpa/s |
| Display mode | Digital display |
| Equipment dimensions | 1200×500×1500(mm) W×H×D |
| Equipment weight | 150kg |
| Power supply | AC220V±10%/50-60Hz,3KW |
| Test station | Single |
| Test pressure | 0.5-20mpa±0.5mpa |
| Test completion reminder time | 3 min |
| Test time | 1~9999H |
| Container bottle | 450ml |
| Solution | Configure |
Test Principle For Ceramic Material Fuchsine Spirit Pressure Test Apparatus:
The ceramic material is broken into pieces that are immersed in a solution containing 1 g of fuchsine in each 100 g of methylated spirit. The solution is maintained at a pressure not less than 15 MPa for a period so that the product of the test duration in hours and the test pressure in megapascals is approximately 180.
|
|
