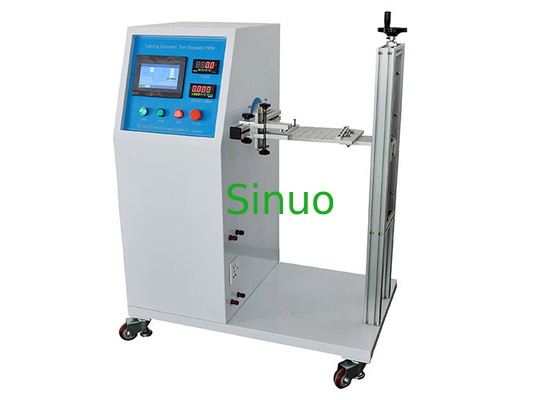

360° Movement Luminaries Adjustment Test Equipment With PLC Control IEC 60598-1
| Power Supply: | AC110V, 60HZ | Rotation Angle: | 0~360° (0~±180°) |
| Test Speed: | 0 To 60 Times/min | Test Cycles: | 1~999999, Can Be Preset |
| Electrical Control: | PLC Touch Screen | Drive method: | Servo Motor |
| Test Station: | One Station | Operation Mode: | Intelligent Control |
| High Light: | 360° Movement Luminaries Adjustment Test Equipment,IEC 60598-1 Adjustment Test Equipment,PLC Adjustment Test Equipment |
||
360° Movement Luminaries Adjustment Test Equipment With PLC Control IEC 60598-1
Standard and Clause For Luminaries Adjustment Test Equipment:
This lighting adjustment test equipment matches the requirements of clause 4.14.3 of IEC 60598-1, mainly used for the lamp adjustment device’s torsion, and bending test of the table lamps, floor lamps and the lamps which are for professional use (such as a plotter lamps).
Technical Parameters For Luminaries Adjustment Test Equipment:
| Power Supply | AC220V, 50HZ |
| Bending /Rotation Angle | 0~360° (or 0~±180°) can be preset on touch screen |
| Test Speed | 0 to 60 times / min, can be preset |
| Test Cycles | 1~999999 can be preset |
| Electrical Control | PLC & 7” touch screen |
| Drive Mode | Stepper motor |
| Operation Mode | Intelligent touch screen control (7 inches) |
| Rotation Center Height | 1200mm |
| Platform Liftable Stroke | 0-1000mm, manually adjustable by rotating the hand wheel |
| Maximum Radius of Gyration of the Rotating Fixture | R500mm |
| Test Station | One station |
Structure For Luminaries Adjustment Test Equipment:
The test equipment is coming with integrated PLC & touch screen, motor drive bending mechanism, sample installation platform. The bending angles, test speed and test cycle can be set on touch screen. Once the test is completed or failed, the test equipment will give out signal.
