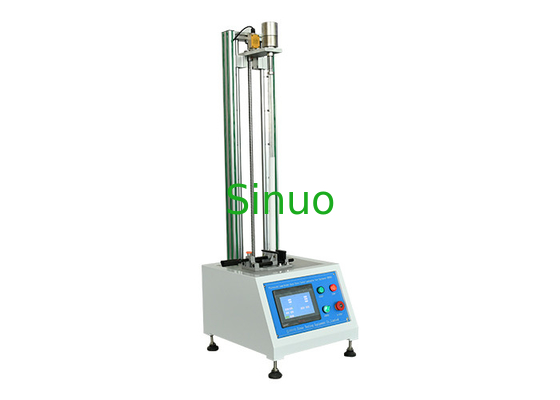

Luminaries Fluorescent Lamp Holder Axial Force Test Device IEC 60598-1
| Power supply: | AC 220V ; 50Hz | Axial force: | 15N, 30N |
| Specimen range: | 0-250mm | Fixtures: | V-type Fixture |
| Brand: | Sinuo | Warranty: | One Year |
| High Light: | Lamp Holder Axial Force Test Device,IEC 60598-1 Axial Force Test Device,30N Led Testing Equipment |
||
Luminaries Fluorescent Lamp Holder Axial Force Test Device IEC 60598-1
Applied Standards For Fluorescent Lamp Holder Axial Force Test Device:
The test equipment is designed and manufactured according to IEC60598-1 clause 4.4.4
Product Overview For Fluorescent Lamp Holder Axial Force Test Device:
It is applicable to axial pressure is applied to the G5 lamp holder of 15N, 30N axial pressure exerted on the G13 lamp holders, pressure holding time 1 minutes then quit, deformation detection lamp holder shall not exceed the amount of light foot length of 1 / 4.
Technical Parameters For Fluorescent Lamp Holder Axial Force Test Device:
| Power | 220V 50Hz |
| The axial force | 15N (bar weight), 30N (superimposed by a 15N vias weight onto the bar) |
| Fixtures | V-type fixture, front and back adjustable,G5 7006-47C;G13 7006-60C |
| Holding specimen height range | 0-250mm |
