| MOQ: | 1 |
| Price: | Customized |
| Standard Packaging: | Carton Box |
| Delivery Period: | 5 Days |
| Payment Method: | T/T |
| Supply Capacity: | 100 Sets Per Month |
IEC 60335-2 Helmet-Type Hairdryer Operation Testing Device With Wooden Sphere
Product overview For Helmet-Type Hairdryer Operation Testing Device:
This wire frame and wooden sphere device meets the requirements of IEC60335-2-23:2003 "Household and similar electrical appliances-Safety-Part2-23:Particular requirements for appliances for skin or hair care" clause 3.1.9 and figure 101.

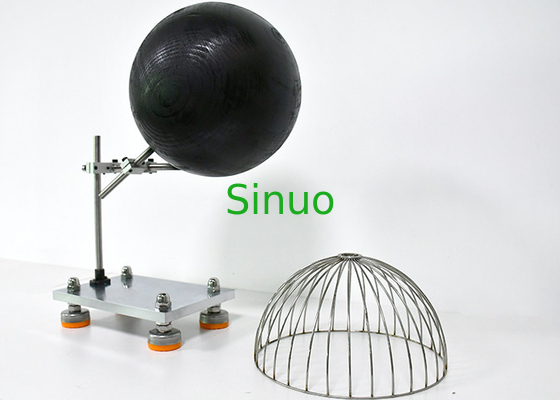

A dull black-painted wooden sphere with the diameter of 200mm, and a wire frame consisting of 32 equally spaced wires φ1.5mm±0.5mm.
Technical Characteristics For Helmet-Type Hairdryer Operation Testing Device:
| Wire Fram Diameter | Ф200 mm |
| Wire Fram Height | 110 mm |
| Wire Fram Top Hole Diameter | Ф18 mm |
| Wires Diameter | Ф1.5±0.5 mm |
| Wires Quantity | 32 pieces |
| Wooden Sphere Diameter | Ф200 mm |
| Wooden Sphere Color | Black-painted |
| Samples and Restrictions | Helmet hair dryer, etc. |
| Application | Device for detecting helmet hair dryer |
| Test Principle | Simulate the normal use of helmet-type hair dryers and hair dryers with flexible hood attachments |
| Structure |
Composed of wooden ball s and wire mesh frame |
How to process the normal operation test for Helmet-type hairdryers?
Helmet-type hairdryers are operated with the axis of the hood inclinded at an angle of 60° to the horizontal or the maximum angle allowed by the construction if this is less. A dull black-painted wooden sphere, 200mm in diameter, is placed in the hood so that its centre coincides with the axis of the hood, the shortest distance between the sphere and the air-outlet grille being 50mm.
Hairdryers having a flexible hood attachment are operated with the hood attachment placed over the wire frame of Figure 101, the frame being positioned over the wooden sphere.
Note 101 Helmet-type hairdryers that are supported by the head are operated as hairdryers having a flexible hood attachment.
|
|
