IPX3/4 Waterproof Oscillating Tube Rain Testing Equipment IEC 60529-2013
Product Information For IPX3/4 Waterproof Oscillating Tube Rain Testing Equipment:

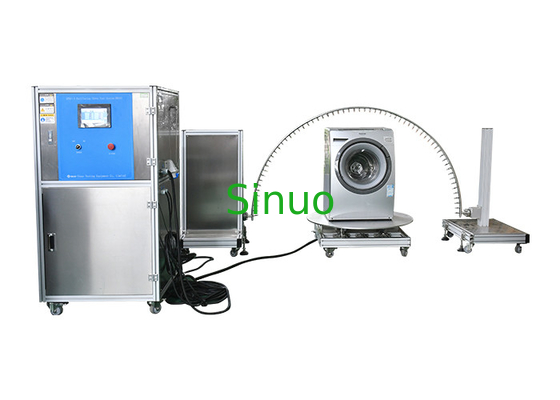

IPX3~4 oscillating tubes test system is designed and manufactured according to IEC60529:2013. It is used for testing the IPX3/IPX4 waterproof level of electrical and electronic products.
The complete set of IPX3~4 oscillating tubes test system is composed of one set of oscillating tubes swing device, one set of oscillating tubes (R200-R1600mm), a turntable, and an intelligent water supply and control cabinet.
The intelligent water supply and control cabinet is composed of a water supply tank, a water pump, and a control system. The test water supply flow is controlled by PLC, frequency converter, and turbine flow sensor. The test flow rates according to the standard requirements have been default in the control system, as long as the operator selects the waterproof test level on the touch screen, the test can be performed. And the test flow rates can also be set by operator.
Technical Parameters For IPX3/4 Waterproof Oscillating Tube Rain Testing Equipment:
| Control & Operation | PLC and touch screen intelligent control system |
| Oscillating Tube Radius | R200, R400, R600, R800, R1000, R1200, R1400, R1600mm are optional, made of stainless steel |
| Needle Pinhole Aperture | Φ0.4mm |
| Spray Holes Distribution |
IPX3:over an arc of 60° either side of the center point (120°) IPX4:over the whole 180° of the semicircles Hole spacing: 50mm |
| IPX3/4 Switching | Switching by changing a certain number of blind hole needles or through-hole needles |
| Oscillating Angle | IPX3:120°(±60°)； IPX4:350°(±175°) |
| Oscillating Speed |
IPX3:4s /cycle(2×120°); IPX4:12s /cycle(2×350°); |
| Water Flow | 1-10L/min adjustable |
| Test Time | 0.01S～99.9 min, can be preset |
| Turntable | Diameter:Φ600mm, rotation speed: 1r/min, can pause at 4 angles, lifting height: 350-1000mm, load capacity: ≤50kg |
| Pressure Gauge | 0~0.25MPa |
| Water Storage System | The control box and the water storage tank are integrated, the water storage tank is equipped with a water level float valve to automatically control the water inlet, and has high and low water level alarm detection, to effectively prevent the pump from being damaged due to dry water. |
| Optional | The handheld spray nozzle as per IEC 60529m figure 5 is optional |
| Safety Protection | Phase sequence protection, leakage protection, water shortage protection, abnormal protection |
| Equipment Dimensions | According to the selection of the oscillating tubes |
