| MOQ: | 1 |
| Price: | Negotiable |
| Standard Packaging: | Standard Exporting Plywood Case |
| Delivery Period: | 30 Days |
| Payment Method: | T/T |
| Supply Capacity: | 20 Sets Per Month |

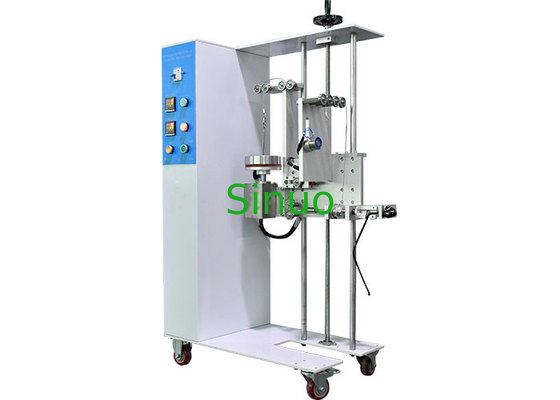

IEC60598-1 Cord Anchorage Pull Force and Torque Test Apparatus
Standards for Cord Anchorage Pull Force and Torque Test Apparatus:
The test appliance conforms to IEC60598-1 clause 5.2.10.3, IEC60335-1 clause 25.15, etc.
Application for Cord Anchorage Pull Force and Torque Test Apparatus:
It is used to check whether the cord anchorage of the household appliances’ power cord is firm, can process the pull force and torque testing.
Technical Characteristics for Cord Anchorage Pull Force and Torque Test Apparatus:
| Power Supply | AC220V, 50Hz |
| Test Station | Single |
| Pull Force Weights | 10N*2, 20N*2, 30N*2( the pulling force of 30N, 60N, 80N, 100N can be achieved) |
| Torque Weights | 5N*1,12.5N*1,17.5N*1(the torque force 0.1Nm, 0.25Nm, 0.35Nm can be achieved) |
| Test Times | 0~999999 can be preset, 25 times is by default |
| Pull Force Frequency | 1 cycle/s |
| Torque Arm | 20mm |
| Torque Time | 0-9999.9s can be preset, default 60s (1 min) |
| Specimen Clamp | Combined clamp for both pull force and torque, matching by the bearing, can reduce the friction when processing torque test |
| Equipment Dimension & Weight | 830×430×1280mm, 100kg |
1. Check whether the fasteners are loose before working, and lock the loose ones.
2. The steel wire rope will be damaged after many tests, so it should be replaced in time.
3. The weight should be removed when it is not working.
4. Cut off the power supply when not working.
Details for Cord Anchorage Pull Force and Torque Test Apparatus:
Video
|
|
