| MOQ: | 1 |
| Price: | Negotiable |
| Standard Packaging: | Plywood |
| Delivery Period: | 30 Days |
| Payment Method: | T/T |
| Supply Capacity: | 20 Sets Per Month |

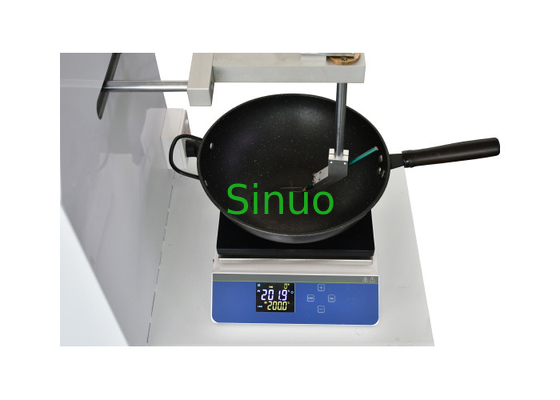

BS EN 12983-1 Scratch Resistance Tester For Testing Cookware Scratch Resistance
Structure for Scratch Resistance Tester:
The device uses the pencil nib to compare the scratch resistance of the coating; Apply 4&8N pressure to the pencil; Insert the pen core into the hole where the hole is 45°, then the pencil nib completely touches the bottom coating of the pot, and then draw a 2~5cm line on the coating; Judge the effect by the li:202nes drawn.
Standards for Scratch Resistance Tester:
BS EN 12983-1: 2020 clause 8.4.2, 8.4.3 and Appendix K.
Main specificationsfor Scratch Resistance Tester:
| Power supply | AC220V, 50HZ |
| Test station | 1 |
| Scratch angle | 45 ° |
| Test mass | One of each 4N, 8N |
| Pencil | One of each HB,2H,3H,4H,5H |
| Drive mode | Electric + eccentric wheel mechanism |
| Test speed | 0-10 times/min, adjustable |
| Scratch length | 20~50mm, adjustable |
| Dimension | WDH=900×500×700mm |
Heating platform DB-2EFS:
| Graphite heating plate | |||||
| Product model | DB-XEFS | DB-1EFS | DB-2EFS | DB-3EFS | |
| Power supply/power | AC220V/50Hz | ||||
| The whole machine power | 1.6KW | 2KW | 3KW | 4KW | |
| Display mode | LCD display | ||||
| Operating temperature | 50-420℃ | ||||
| Temperature control precision of instrument | ±1℃ | ||||
| Temperature uniformity | 3% | ||||
| Heat the size | 300*200mm | 400*280mm | 450*350mm | 600*400mm | |
| The plate material | graphite | ||||
| The plate thickness | 12mm | ||||
| bearing | 5kg | ||||
| The net weight | 9kg | 13kg | 18kg | 30kg | |
| Product size | 30*35*20cm | 40*43*20cm | 45*50*20cm | 60*55*20cm | |
5 Power on the equipment, select the test according to your requirements.
Ambient temperature test: Test at room temperature, select 8N load;
High temperature test: Turn on the power of the heating platform to start heating, set the temperature of the heating platform (standard requirement is 200℃), and select 4N load.
Note: During the high temperature test, when the temperature display of the heating platform reaches the set value, press the start button to start scraping, and observe whether the speedometer under the panel is the speed required for the test. If not, you can adjust the speed controller on the panel.
6 Set test times.
7 After the test is completed, check whether the cookware meets the requirements according to the standard.
Maintenance:
1 Before working, please check whether the fasteners are loose, and make sure that the loose fasteners are locked.
2 Do not touch the surface of the heating platform when heating to prevent burns.
3 Please remove the weight when it is not working.
4 Please cut off the power when not working.
|
|
