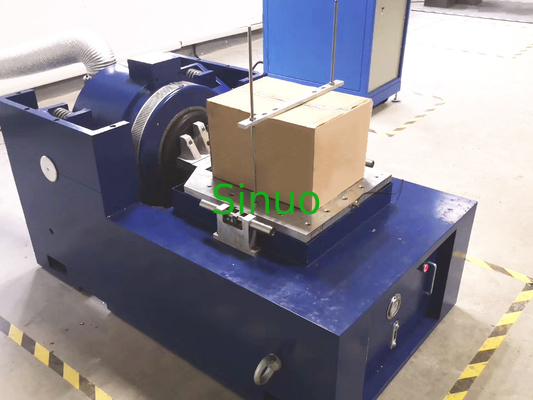

IEC 62133-1 Battery Vibration Impact Test Bench With Real Time Display Function

IEC 62133-1 Battery Vibration Impact Test Bench With Real Time Display Function

MOQ: 1
Price: Customized
Standard Packaging: Plywood
Delivery Period: 1 Month
Payment Method: T/T
Supply Capacity: 5 Sets Per Month
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate (Cost Additional)
Model Number
SN553-2940N
Sinusoidal Thrust:
2940N (300kg.f)
Impact Thrust:
5880N(600kg.f)
Frequency Range:
DG~3500Hz
Dynamic Diameter:
Φ150mm
Impact Displacement:
25mm
Maximum Speed:
1.8m/s
Maximum Acceleration:
981m/s2 (100g) (No-load)
Continuous Displacement:
20mm
Minimum Order Quantity:
1
Price:
Customized
Packaging Details:
Plywood
Delivery Time:
1 Month
Payment Terms:
T/T
Supply Ability:
5 Sets Per Month
High Light:

Battery Vibration Impact Test Bench

,

Real Time Display Impact Test Bench

,

IEC 62133-1 Battery Impact Test Bench

Product Description



IEC 62133-1​ Battery Vibration Impact Test Bench With Real-Time Display Function



Overview:



This vibration system conforms to IEC 60068-2-6, it is required by IEC 62133-1:2017 clause 7.2.2, IEC 62133-2:2017 clause 7.3.8.1,etc.



Technical Parameters:



Vibration generator
Sinusoidal thrust 2940N (300kg.f)
Random thrust 2940N (300kg.f)
Impact thrust 5880N(600kg.f)
Frequency range DG~3500Hz
Continuous displacement 20mm
Impact displacement (maximum displacement) 25mm
Maximum speed 1.8m/s
Maximum acceleration 981m/s2 (100g) (No-load)
Dynamic diameter Φ150mm
First-order resonant frequency 2900 Hz±5%
Allowable eccentric moment ≤2500N·cm
Equivalent mass of moving parts 3kg
Load connection point 13
Table screw size (standard) M8
Table screw layout (diameter, Yuan Zhou) 13-M8 Depth 16mm
Axial vibration isolation frequency <3Hz
Maximum load 120kg
Magnetic flux leakage ≤1mT
Ambient temperature 0~40℃
Size 1600mm×800mm×700mm
Weight 1100kg
Power amplifier output 3kVA
Signal-to-noise ratio >65dB
System protection
  1. Power amplifier overvoltage protection
  2. System timing protection
  3. Power amplifier undervoltage protection
  4. Zero Signal Protection (Reset)
  5. over displacement protection
  6. Leakage protection
  7. Table overheat protection
  8. Excitation fuse protection
  9. Module overheat protection
  10. External timing protection
  11. Output overcurrent protection
  12. External zero signal protection
  13. Output overvoltage protection
  14. Water Smoothing Platform Interlocking Protection
  15. Module over-current protection
  16. Thermal overload protection
  17. Module timing protection
  18. Power amplifier boot soft start protection
Rated output voltage 100Vrms
Output current With the 150A step, the maximum can be up to 6000A
Input impedance ≥15kΩ
Input signal voltage ≤1.5Rms
Efficiency of power amplifier >92%
Harmonic distortion (resistance load) <1.0%
Output voltage measurement error ≤5%
Output current measurement error ≤5%
Output current crest factor ≥3
DC stability Zero drift at the output is less than 30mv/8h
Frequency range 1-3500Hz:±3dB ; Medium frequency gain:≥80
DC/AC conversion efficiency >92%
Load property Resistive, capacitive, emotionally arbitrary
Unbalance of parallel flow ≤2.8%
Average time free working time(MTBF) >3500 hours
Cooling mode Forced air cooling
Power AC 3phase 380V±10%, 60Hz
Size 600mm×620mm×1600mm
Weight 580kg
Cooling fan with muffler
Fan power 0.75kW
Air volume 0.1m3/s
Duct diameter 125mm
Duct length 4m
wind pressure 1kpa
Size 500mm×520mm×650mm
Weight 30kg
Horizontal extension slide
Platform size 500×500mm
Equivalent mass (maximum load-bearing) 28kg
Upper bound frequency Sine 2000Hz, random 2000HZ
Material Magnesium aluminum alloy
Vertical Expansion Table
Platform size 500mm×500mm
Equivalent mass (maximum load-bearing) 28kg
Upper bound frequency Sine 1500Hz,random 2000HZ
Material Magnesium aluminum alloy

Controller overview and main technical parameters:



1.Sinusoidal Control Measurement System Specifications and Functions:



Frequency range 2-5000Hz
Crossing point 32 segments, and can wait for displacement, equal speed, etc.
Frequency display The vibration test curve set by the man-machine dialogue can be directly displayed on the screen. In the vibration test, the vibration curve can be displayed in real time, and the error dB at the time can be displayed continuously.
Output voltage 7Vrms
Sweep mode Linear, logarithmic
Sweep rate 0.1-10oct/min
Control accuracy ±0.5dB
Dynamic Range 79dB
Control method Peak, average, rms, tracking filter
Vibration Mode Constant Frequency, Sweep (Linear, Logarithmic), Pause, Resume, Return
Filter form Biased anti-aliasing filter (eight-stage) passband 0.2dB/oct
Signal form Sine wave
Waveform distortion ≤0.5%

Setup function: The test specification of the human-machine dialogue setup can be saved for reuse

The controller can be on the rack, integrated with the amplifier cabinet, and can also be separated from the amplifier cabinet



2. Random Control Measurement System Specifications and Functions:



Frequency range 100,200,400,500,1000,2000,4000,5000Hz
Resolution 100,200,400,800 lines
Driving spectrum dynamic range 60dB
Control spectrum dynamic range 40dB
Loop time 2000Hz, 400 lines single channel 0.6 seconds
Power spectrum control accuracy ±1dB (90% confidence)
RMS value control accuracy ±0.2dB
Control Channels Independent Channels
Control method Average, maximum
Spectral settings Up to 32 levels, both with PSD [(m.s2)2/Hz] and dB/oct settings



3.Impact control measurement system technology standard and function:



Waveform Half Sine, Triangle, Sawtooth, Square Wave
Frequency Range 5-2000Hz
Vibration level presets -18dB, -15dB, -12dB,-9dB,-6dB,-3dB,0dB seven vibration levels, vibration time for each vibration level :Set by the user.
Upgrade Modes Automatic upgrade and manual upgrade
Display function With real-time display, print function.
Protection function Over-limit alarm, open-circuit protection and automatic over-limit shutdown
Setting function The test specification set during the man-machine conversation can be saved for repeated use.
Measuring range 0-200g divided into eight gears 1,2.5,5,10,25,50,100,200g range automatically shift
Filter Format Programmable anti-aliasing filter (eight-stage) 0.2dB pass band and -55dB/oct stop band
Signal form True random, pseudo-random



4. Characteristics and Technical Specifications of USB01 Card:



Full-scale input 16-bit 16-channel single-ended A/D, speed 400KS/S, +/-5V
Full-scale output One 16-bit D/A, +/-5V
Win-XP Supports USB1.1 and USB2.0 standards for Win-2000
Main Controller 32-bit 120MHz Floating Point Digital Signal Processor (DSP)
Digital output 8 bits
High-speed continuous acquisition 34K*32Bit high-speed static memory
Clock signal output 819.2K filter
Input Channel 16-channel single-ended
Analog Input Signal Voltage Range Bipolar +/-5V
Resolution 16 bits
A/D conversion time 2.5 microseconds
Acquisition pass rate 400KHz
Accuracy Better than 0.015%
Nonlinear deviation <4 LSB
Data Format 16-bit twos complement
Input impedance 10 MΩ
A/D conversion trigger mode Instruction, timer
D/A output signal voltage range Bipolar +/-5V
D/A resolution 16 bits
Digital/analog conversion time 5 microseconds
Accuracy better than 0.015%
Nonlinear deviation <4 LSB
Data Format 16-bit twos complement
Output impedance <0.1Ω
Main controller 32-bit 120MHz floating point DSP TMS320VC33
System clock 40.96KHz
Two 32-bit timer/counters For D/A and A/D timing
Digital output 8 bits(TTL)
Clock output 819.2KHz
Power Consumption <2.5W(5V, 500mA)
