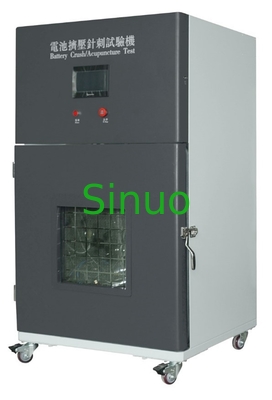

IEC62133-1 Stainless Steel Hinge Battery Crush Acupuncture Tester
Product information:
It is conforming to IEC62133-1:2017 clause 7.3.6, IEC62133-2:2017 clause 7.3.5, IEC60086-4 clause 6.5.3 IEC 60086-1 and etc.
This Battery crush test machine is designed to simulate the power lithium battery terminal actual using environments, such as battery in crush, penetration and feedback the various results in different crushing/penetration conditions.
Testing should be under environment temperature of 20℃ ± 5℃, put the battery which connect with thermocouple (the touch point of thermal couple fixed on battery large surface) in the draught cupboard, with 3mm non corrosion stainless nail penetrate the center point of the battery with speed of 20mm/s-80mm/s.
Parameters:
| Structure | Vertical type with vertical pressure structure |
| Input Voltage | 380V, 50 Hz |
| Pressure Range | 1KN ~ 20KN(Controllable) |
| Force Tolerance | ±1% |
| Crush Range | 0~400MM |
| Unit Switch | Kg/N/Lb |
| Nail Penetration Speed Range | 1 ~ 80mm/s(Controllable) |
| Speed Accuracy | ±0.1MM/S |
| Nail Penetrate Power | Oil Pressure |
| Testing Space | ≥ W300*D300*H200mm |
| Overall Dimension | W940XD780XH1620 mm |
| Observation Window | 390 X 360mm(20mm thick tempered explosion-proof glass) |
| Lighting | With light on chamber inner top side |
| Base | Installed with 4 universal wheels and 4 fixing casters, available for free moving and fixing . |
| Explosion -proof Devices | With air release function, exhaust the waste air which produced when testing; With explosion proof and pressure release function,Magnetic adsorption type pressure relief door on back side of protection cabinet(300*300mm),when with strong air shock, the relief door open automatically ,reduce explosion shock force . |
| Chamber Bottom | With extract type collection device for electrolyte and Experimental debris. |
| Tungsten steel needle |
Φ3X100MM 10 pieces Φ5X100MM 10pieces |
| Machine Weight | About 400KG |
| Display Method | PLC Touch Screen |
|

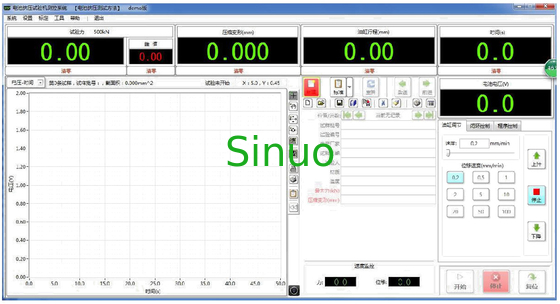

Touch Screen Interface |
|
| Air Exhaust System |
Long axis motor drive the aluminum blades, able for exhaust the waste air out anytime. |
| Pressure Balance System | Double hole air supply, ensure pressure balance inside chamber. |
| Maintenance System | All parts that need dismounting all with trap structure, convenient for maintenance. |
| Safety System |
1. Stainless steel hinge, lock the chamber door, ensure the door not shocked open when with strong air flow. 2.With micro switch on chamber door, only when chamber door closed the system can work normally. 3.Chamber back side with door type design, one side hinge, another side with strong magnetic lock, when with strong air flow shock, the back cover open automatically, thus reduce the explosion shock force. 4. Inner chamber with high temperature resistance structure, without inflammable electrical cables or other materials. |
| Humanization design |
1.About 800mm distance between crush bench and the floor, easy for operation . 2. Double layer temper glass observation window, ensure safety and simultaneously testers able to observe the testing condition . 3.Inner built energy saving light for the whole testing space, convenient forobservation. |
| Camera System |
Installed with high resolution camera system, able for clear observation of the testing procedure. |
