| MOQ: | 1 |
| Price: | Customized |
| Standard Packaging: | Plywood |
| Delivery Period: | 1 Month |
| Payment Method: | T/T |
| Supply Capacity: | 5 Sets Per Month |

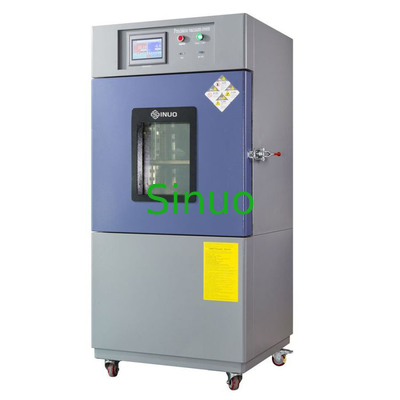

IEC 62133-1 SECC Steel Plate Battery Thermal Impact Thermal Abuse Test Chamber
Product information:
It conforms to IEC62133-1:2017 clause 7.3.5, IEC62133-2:2017 clause 7.3.4, IEC61960, IEC60086-4 clause 6.5.7, IEC 60086-1 etc.
The battery thermal impact tester, also called the battery thermal abuse test chamber, uses a hot air circulation system by simulating a battery placed in a forced-air high temperature box, raising the temperature to a set test temperature and maintaining a certain time at a certain heating rate. It can ensure even distribution of working temperature.
Parameters:
| Temperature range | Ambient temperature～200℃ (controllable) |
| Control Accuracy | ±0.5℃ |
| Distribute Temp. | ±2.0℃(non-load) |
| Temperature rising rate | 5℃±2℃/minute (RT～150℃) |
| Control Method | PLC Touch Screen Control |
| Working room dimension | W600mm×D500mm×H600mm |
| External Dimension | W940X D780 X H1620mm |
| Inner Chamber Material | SUS304mirror stainless steel, clean and smooth internal chamber, easy for cleaning, with high corrosion resistance performance. All internal material with environment friendly material, inter barrel with no trace argon arc welding |
| External Chamber Material | SECC steel plate, powder painted (thickness1.5mm) |
| Bottom | Installed with universal wheel |
| Observation Window | Toughened glass with bursting disk. |
| Insulation Material | High density glass wool, well insulation, best ensure the temperature insulation. With high temperature resistant silicon seal, long time bear high temperature above 300 degrees. |
| Power Source | AC 220V ±10%,60HZ |
| Heating Power | About 3KW |
| Touch Screen Monitoring Picture |  |
Features:
Air Supply System:
|
1.Forced Air Conveying circulation design. The air source generated by circulation motor driving the wheel and force the air pass through the heater to convey the hot air into the drying chamber while the used air can be inhaled to the air channel as the air source and be heated again. This way is taken to reduce the energy loss and assure the temperature in uniform distribution in the chamber. If any disturbance of door open or close, this air conveying and circulation system can recover the operational temperature value in a short time. 2. Long axis high temperature resistant motor, power 1HP60Hz 3. Blower with multi impeller turbo type, high strength, inner installed with adjustable air flow plate, make the air channel smoothly. |
