| MOQ: | 1 |
| Price: | Customized |
| Standard Packaging: | Plywood |
| Delivery Period: | 1 Month |
| Payment Method: | T/T |
| Supply Capacity: | 5 Sets Per Month |
IEC 62133-1 Battery Vibration Impact Test Bench With Noise-Cancelling Fan
Overview:
This vibration system conforms to IEC 60068-2-6, it is required by IEC 62133-1:2017 clause 7.2.2, IEC 62133-2:2017 clause 7.3.8.1,etc.
1. Double magnetic circuit structure surrounds, compared with the single magnetic circuit, the magnetic field strength is stronger, the platform body is smaller, and the magnetic flux leakage is smaller.
2. Skeleton-free moving coil: Due to the elimination of the moving coil bobbin, the active system is lightweight, the no-load acceleration is high, and the first-order natural vibration frequency of the moving coil is high, so that the full-band waveform distortion become small and the moving coil heat dissipation is good.
3. Suspension device: roller arm suspension system and linear bearing guide, so that the vibration table guide performance is good, with good anti-unbalanced load capacity.
4. The air spring support with small dynamic stiffness and large static stiffness is selected to have strong bearing capacity and good low frequency characteristics.
5. The trunnion vibration: vertical vibration can save the special foundation.
6. The special air-cooled low-noise fan adopts a new air duct design to enhance the cooling effect.
Technical Parameters:
| Vibration generator | |
| Sinusoidal thrust | 2940N (300kg.f) |
| Random thrust | 2940N (300kg.f) |
| Impact thrust | 5880N(600kg.f) |
| Frequency range | DG～3500Hz |
| Continuous displacement | 20mm |
| Impact displacement (maximum displacement) | 25mm |
| Maximum speed | 1.8m/s |
| Maximum acceleration | 981m/s2 (100g) (No-load) |
| Dynamic diameter | Φ150mm |
| First-order resonant frequency | 2900 Hz±5% |
| Allowable eccentric moment | ≤2500N·cm |
| Equivalent mass of moving parts | 3kg |
| Load connection point | 13 |
| Table screw size (standard) | M8 |
| Table screw layout (diameter, Yuan Zhou) | 13-M8 Depth 16mm |
| Axial vibration isolation frequency | ＜3Hz |
| Maximum load | 120kg |
| Magnetic flux leakage | ≤1mT |
| Ambient temperature | 0~40℃ |
| Size | 1600mm×800mm×700mm |
| Weight | 1100kg |
| Power amplifier output | 3kVA |
| Signal-to-noise ratio | ＞65dB |
| System protection |
|
| Rated output voltage | 100Vrms |
| Output current | With the 150A step, the maximum can be up to 6000A |
| Input impedance | ≥15kΩ |
| Input signal voltage | ≤1.5Rms |
| Efficiency of power amplifier | ＞92% |
| Harmonic distortion (resistance load) | ＜1.0% |
| Output voltage measurement error | ≤5% |
| Output current measurement error | ≤5% |
| Output current crest factor | ≥3 |
| DC stability | Zero drift at the output is less than 30mv/8h |
| Frequency range | 1-3500Hz:±3dB ； Medium frequency gain:≥80 |
| DC/AC conversion efficiency | ＞92% |
| Load property | Resistive, capacitive, emotionally arbitrary |
| Unbalance of parallel flow | ≤2.8% |
| Average time free working time(MTBF) | ＞3500 hours |
| Cooling mode | Forced air cooling |
| Power | AC 3phase 380V±10%, 60Hz |
| Size | 600mm×620mm×1600mm |
| Weight | 580kg |
| Cooling fan with muffler | |
| Fan power | 0.75kW |
| Air volume | 0.1m3/s |
| Duct diameter | 125mm |
| Duct length | 4m |
| wind pressure | 1kpa |
| Size | 500mm×520mm×650mm |
| Weight | 30kg |
| Horizontal extension slide | |
| Platform size | 500×500mm |
| Equivalent mass (maximum load-bearing) | 28kg |
| Upper bound frequency | Sine 2000Hz, random 2000HZ |
| Material | Magnesium aluminum alloy |
| Vertical Expansion Table | |
| Platform size | 500mm×500mm |
| Equivalent mass (maximum load-bearing) | 28kg |
| Upper bound frequency | Sine 1500Hz,random 2000HZ |
| Material | Magnesium aluminum alloy |

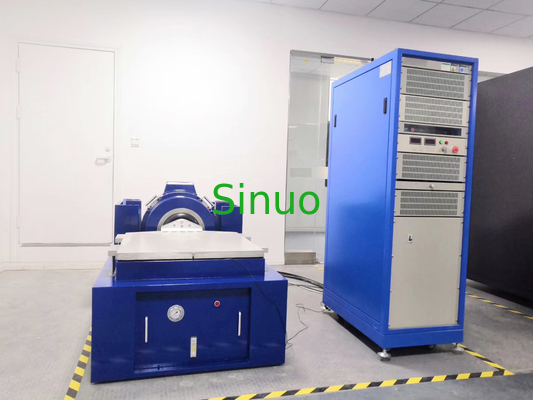

The vibration test system consists of One-piece horizontal vibration generator / Vertically-expanded tabletop / Cooling fan with muffler /Digital switching power amplifier / vibration control measuring instrument. In addition, according to the size of the user's test piece, it needs to be customized or matched with the vertical expansion table and can be combined with the environmental test box to form an integrated environmental test equipment.
