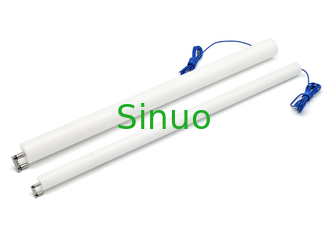

IEC 60065 2014 Clause 9.1.1.3 Test Probe 19 Ф5.6mm Children Finger Probe

IEC 60065 2014 Clause 9.1.1.3 Test Probe 19 Ф5.6mm Children Finger Probe
IEC 60065 2014 Clause 9.1.1.3 Test Probe 19 Ф5.6mm Children Finger Probe IEC 60065 2014 Clause 9.1.1.3 Test Probe 19 Ф5.6mm Children Finger Probe IEC 60065 2014 Clause 9.1.1.3 Test Probe 19 Ф5.6mm Children Finger Probe IEC 60065 2014 Clause 9.1.1.3 Test Probe 19 Ф5.6mm Children Finger Probe

Large Image :  IEC 60065 2014 Clause 9.1.1.3 Test Probe 19 Ф5.6mm Children Finger Probe

Product Details:
Place of Origin: China
Brand Name: Sinuo
Certification: Calibration Certificate (Cost Additional)
Model Number: SN2210-13
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Aluminium Box
Delivery Time: 3 Days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 100 sets per month
Detailed Product Description
Applied Standard: IEC 60065 Applied Clause: Clause 9.1.1.3
Finger Probe Diameter: Ф5.6mm Finger Probe Length: 44mm
Probe Material: Stainless Steel Handle Material: Nylon
Axes Of Joints Distance: 14.67mm Extension Handle Diameter: Ф25.4±0.3mm
High Light:

5.6mm Test Probe

,

Clause 9.1.1.3 Test Probe



IEC 60065:2014 clause 9.1.1.3 Test Probe 19 Ф5.6mm Children Finger Probe



Product Overview:

This probe conforms to the standard requirements of IEC 61032 figure 13 test probe 19, IEC 60065:2014 clause 9.1.1.3, etc. This probe is intended to simulate access to hazardous parts by children of 36 months or less.



Probe Dimension:

Hemispherical radius (mm) R2.8±0.05
Finger probe diameter (mm) Ф5.6±0.1
Finger probe length (mm) 44±0.15
Axes of joints distance (mm) 14.67
Collar diameter (mm) Ф25.9±0.3
Collar length (mm) 101.6±0.3
Extension handle diameter (mm) Ф25.4±0.3
Extension handle length (mm) 464.3±0.8
Finger probe material (mm) Stainless steel
Collar and handle material (mm) Nylon

Operation:

Please refer to the relevant standards.

Take IEC 60065:2014 clause 9.1.1.3 as an example:

The test is repeated using small finger probes according to test probes 18 and 19 of IEC 61032:1997. This does not apply if the intended conditions of use prevent the apparatus from being accessed by children.



The test probe doesn’t have built-in force, if specific applied force required, the test probe should work together with a force gauge (use a force gauge to apply required force on the end of the probe directly).



The probe is equipped with a connection cable, for verifying whether the LIVE PARTS touched, recommended to work with our anti-shock probe experiment device or a 40~50V voltage indicator. Connect the connection cable of the probe with one terminal of the anti-shock probe experiment device, and then use an additional cable to wire the LIVE PART of specimen with the other terminal of the anti-shock probe experiment device. Showing as following reference picture:

IEC 60065 2014 Clause 9.1.1.3 Test Probe 19 Ф5.6mm Children Finger Probe 0



Details

IEC 60065 2014 Clause 9.1.1.3 Test Probe 19 Ф5.6mm Children Finger Probe 1
