| MOQ: | 1 |
| Price: | Customized |
| Standard Packaging: | Plywood |
| Delivery Period: | 30 Days |
| Payment Method: | L/C, T/T, Western Union, MoneyGram |
| Supply Capacity: | 10 Sets Per Month |

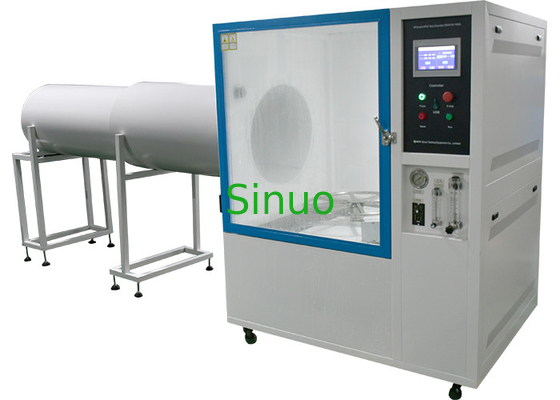

IEC60529 IPX3~6 Comprehensive Waterproof Testing Equipment 1000L
Overview:
Application Background: The destruction of products and materials by natural water (rain, sea, river, etc.) causes an incalculable economic loss every year. The damages caused mainly include corrosion, fading, deformation, strength drop, expansion, mildew, etc., especially electrical products are easily broken into fires due to short circuits caused by rain. Therefore, enclosure protection water testing for specific products or materials is an essential and critical process.
General application areas: outdoor lighting, household appliances, auto parts and other electronic and electrical products.
Equipment function: The main function of the equipment is to test the physical and other related properties of electronic and electrical products, lamps, electric cabinets, electrical components, automobiles, motorcycles and their parts and components under simulated climatic conditions. After the test, judge whether the performance of the product meets the requirements by the verification, so as to facilitate the design, improvement, verification and factory inspection of the product.
Standard: IEC60529:1989 +A1:1999 +A2:2013 <Degrees of protection provided by enclosures (IP Code)> IPX4 and IPX5 test, figures 5 and figure 6.
Technical parameters:
| Technical Parameters | Basic Parameters | |
| Inner Chamber Size | L1000*W1000*H1000mm | |
| Outer Chamber Size | L1480*W3800*H1800mm | |
| Turntable Diameter | ￠400mm | |
| Turntable Maximum Load Bearing | 30KG | |
| Turntable Speed | 1 -5r/min (adjustable) | |
| Turntable Rotation Method | Always positive / positive and negative alternate | |
| Flow Adjustment Method | Manually adjust flow with adjustable panel flow meter | |
| Test Time | 0-999 min | |
| Total Wright | 350kg | |
| IPX34 Spray Nozzle Parameters | ||
| Parameters of Spray Nozzle |
Outer diameter: Ф102mm, spherical diameter: SФ75.5mm, 1 hole at the center, 2 inner circles of 12 holes at 30° pitch,4 outer circles of 24 holes at 15° pitch , total 121 holes of Ф0.5mm, made of brass. |
|
| Water Flow | 10L/min±5%, flow meter is adjustable through rotameter, electronic flowmeter is optional | |
| Pressure | 50～150Kpa, the pressure gauge measuring range: 0～0.25Mpa | |
| Moving Shield | Made of aluminum, can be detachable | |
| Spray Distance | 2.5M (nozzle away from the center of the turntable) | |
| Nozzle Fixed Method | Mechanical fixing | |
| IPX56 Jet Nozzle Parameters | ||
| IPX5 Nozzle Jet Aperture | 6.3mm | |
| IPX6 Nozzle Jet Aperture | 12.5mm | |
| IPX5Jet Flow | 12.5±0.625 | |
| IPX6 Jet Flow | 100±5L/min | |
| Water Pressure (Mpa) | Adjusted according to the specified water flow | |
| Jet Distance | 2.5M (nozzle away from the center of the turntable) | |
| Nozzle Fixed Method | Mechanical fixing | |
| Electrical Parameters | ||
| Power Supply for Equipment | 380V, 50Hz | |
| Equipment Power | 3.0KW | |
| Safety Protection Function | Leakage protection, water shortage protection, short circuit protection | |
| Conditions of Use | The following conditions are guaranteed by the user and the corresponding connection is completed. | |
| Use of Space |
The ground is level, the drainage is smooth, floor and wall are waterproofing, Ground bearing capacity is not less than 200kg/㎡ Well ventilated No strong vibration around the device No strong electromagnetic field around the device No flammable, explosive, corrosive substances and dust around the equipment Appropriate use and maintenance space is left around the equipment: Rear side, left and right side, top of the equipment: 800mm; front side of equipment: 1400mm |
|
| Environmental Conditions |
Temperature:5℃～35℃ Relative humidity: ≤85% Air pressure:86kPa～106kPa |
|
| Voltage, Frequency | AC380V±10%; 50Hz±10%; three-phase four-wire + protective ground wire | |
| Power | 3.0kW | |
| Protective Grounding Resistance | Grounding resistance of protective grounding wire is less than 4Ω | |
| Power Switch |
1. The user is required to configure the leakage protection air switch of the corresponding capacity for the equipment at the installation site, and the switch must be used independently for the device. 2. It is forbidden to use the knife switch or power socket. 3. The leakage protection air switch is not more than 2 meters away from the equipment. |
|
| Water Source |
1. The user is required to configure the water source for the equipment at the installation site, the water pressure is not less than 0.2Mpa, and the 4-point faucet is installed. 2. The position of the faucet is no more than 2 meters away from the equipment. |
|
Equipment Features:
1.Suitable for product IPX4 and IPX5 (actually can achieve IPX3, IPX4, IPX5, IPX6) waterproof rating test.
2. The outer casing is made of domestic high-quality steel plate, and the surface is painted with baking varnish, which is beautiful and durable.
3.The inner chamber and turntable are all made of SUS304# stainless steel plate to ensure long-term use without rust.
4. There is a transparent observation window (tempered glass material) on the door, and LED lighting inside of the chamber, easy for operator to observe the internal test.
5. IPX34: Configured a spray nozzle according to the specifications of IEC60529 figure 5 (as shown below)
6. IPX56: Configured a spray nozzle according to the specifications of IEC60529 figure 6 (as shown below):
7. Turntable drive: use high-quality stepper motor, can automatically control the positive and negative rotation (forward and reverse: suitable for the sample power-on test and to prevent cable winding).
8. The test time can be set on the touch screen. The setting range is 0-999min (adjustable).
9. The core control system adopts 7-inch touch screen + PLC. The electrical components adopt imported brands such as Omron. The wiring process conforms to the requirements of national standards. The layout of the electric board is reasonable, the wiring is firm and the marking is clear.
