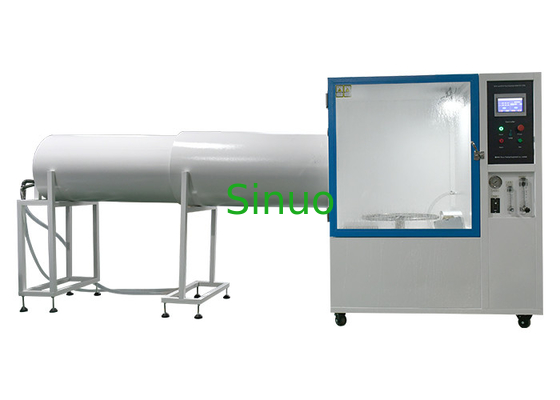

IEC60529 IPX3/IPX4/IPX5/IPX6 Comprehensive Water Ingress Testing Equipment 1000L
Overview:
The shell of the testing machine is made of high-quality stainless steel plate, and the work box part is made of high-quality 304B stainless steel plate. The test box is composed of the main part, the transmission mechanism and the electrical part.
Principle overview:
The test box is mechanically driven to achieve the purpose of the test. The turntable transmission mechanism drives the worm through the motor to drive the worm gear to reach the specified speed. The pendulum is the motor that drives the reducer to decelerate and drives the gear rod to drive the passive gear, so that the pendulum moves.
Standards compliant: IEC60529:1989 +A1:1999 +A2:2013.
Technical parameters:
| Basic Parameters | |
| Chamber inner size | W 1000mm* D 1000mm* H 1000mm |
| Chamber external size | About W 1450mm* D 3800mm* H 1800mm |
| Turntable diameter | ￠600mm |
| Turntable maximum load bearing | 30KG |
| Turntable rotation speed | 1 -5r/min (accurately adjustable) |
| Turntable rotation direction | Always forward / positive and negative alternate |
| Flow adjustment method | Manually adjust the flow by adjusting the flow meters on the panel |
| Testing time | 0-999 min |
| Total equipment weight | 350kg |
| IPX3 IPX4 Technical Parameters | |
| Spray nozzle | Outer diameter: Ф102mm, spherical diameter: SФ75.5mm, 1 hole in the center, 30° pitch 12 holes 2 inner circles, 15° pitch 24 holes 4 outer circles, a total of 121 holes Ф0.5mm, made of brass |
| Water flow | 10L/min±5%, the flowmeter can be adjusted by rotameter, optional electronic flowmeter |
| Pressure | 50～150Kpa, pressure gauge measuring range: 0～0.25Mpa |
| Removable cover | Aluminum, removable |
| Spray distance | 2.5M (nozzle away from the center of the turntable) |
| Nozzle fixing method | Mechanical fixation |
| IPX5 IPX6 Technical Parameters | |
| IPX5 nozzle aperture | 6.3mm |
| IPX6 nozzle aperture | 12.5mm |
| IPX5 water jet flow | 12.5±0.625 L/min |
| IPX6 water jet flow | 100±5L/min |
| Water pressure (Mpa) | Regulate the pressure according to prescribed water flow |
| Water jet distance | 2.5m (nozzle away from the center of the turntable) |
| Nozzle fixing method | Mechanical fixing |
| Electrical Parameters | |
| Equipment power supply | 380V or meet client’s local power supply |
| Equipment power | 3.0KW or meet client’s local power supply |
| Security protection | Leakage protection, water shortage protection, short circuit protection |
Equipment Features:
1. It is suitable for IPX5, IPX6 waterproof grade test.
2. The shell is made of high-quality steel plates, beautiful and durable.
3. The drip board, inner chamber, turntable and other wading parts are all made of SUS304 stainless steel to ensure no rust for long time use.
4. The drip tank is with vacuum designed and high-rust stainless-steel construction; the nozzle contact position adopts brass cone design, which is convenient for installing the spray nozzle.
5. The water supply pipeline is equipped with a filter, which can filter impurities in the water, so as to prevent nozzle clogging.
6. With compressed air-drying function, after the test is completed, the excess water in the drip tank can be removed to avoid prolonged water fouling and block pinholes. (Note: users need to provide compressed air supply).
7. The oscillating tube is driven by high-quality servo stepping motor, the swinging speed and angle are precisely adjustable, and here is no out-of-step problem (out of step: it will cause the malfunction of the oscillating tube, the oscillating tube may hit the middle turntable shaft, and cause equipment damage).
9. The IPX3/4 spray nozzle and IPX5/6 hose nozzles are made according to following:
10. A power outlet is built-in this chamber, the power on/off time for specimen can be controlled by the program: power off (0-999min), power on (0-999min), power off (0-999min).
11. A waterproof LED lighting is installed in the test chamber, and there is a large observation window on the door to facilitate the observation of the test inside the chamber.
12. The equipment comes with a water tank for recycling water, user does not need to build a professional waterproof test room. There is a float valve in the water tank, which automatically controls the water inlet and has the function of high and low water level alarm monitoring, to effectively prevent the pump from being damaged due to dry water shortage.
13. The core control components adopt the 7-inch touch screen + Mitsubishi or Panasonic PLC; the electrical components adopt imported branded ones such as LG and Omron; the wiring process conforms to the international standard requirements, the layout of the electric board is reasonable, the wiring is firm, and the marking is clear.
14. Self-developed IPX waterproof level test operation interfaces, operator directly select the relative waterproof level on the touch screen to process corresponding IP Code testing as per standard requirements automatically, the operation is simple and humanized.
15. The base of the equipment is equipped with 4 movable brake casters for easy movement and fixing.
