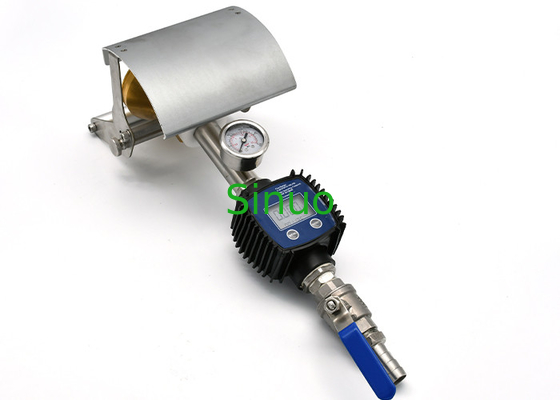

IEC 60529 Hand Held IPX3 And IPX4 Spray Nozzle With Digital Flowmeter

IEC 60529 Hand Held IPX3 And IPX4 Spray Nozzle With Digital Flowmeter

MOQ: 1
Price: Customized
Standard Packaging: Carton Box
Delivery Period: 3 Days
Payment Method: L/C, T/T, Western Union, MoneyGram
Supply Capacity: 100 Sets Per Month
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate (Cost Additional)
Model Number
SN446B
Applied Standard:
IEC 60529:2013
Spray Nozzle Material:
Brass
Spray Nozzle Outer Diameter:
Ф102mm
Spray Nozzle Spherical Diameter:
SФ75.5mm
Test Flow:
10L/min±5%
Measuring Range:
8L/min ~120L/min, Digital
Moving Shield:
Made Of Aluminum, Detachable
IP Code:
IPX3/4
Brand Name:
Sinuo
Warranty Time:
One Year
Minimum Order Quantity:
1
Price:
Customized
Packaging Details:
Carton Box
Delivery Time:
3 Days
Payment Terms:
L/C, T/T, Western Union, MoneyGram
Supply Ability:
100 Sets Per Month
High Light:

IPX4 Spray Nozzle

,

IEC 60529 Spray Nozzle

,

Digital Flowmeter Spray Nozzle

Product Description



IEC 60529 Hand-held IPX3 And IPX 4 Spray Nozzle With Digital Flowmeter



Overview:

It meets the requirements of IEC 60529-2013 “Degrees of protection provided by enclosure (IP code)” IPX3 and IPX4, Figure 5.

The spray nozzle is used to verify the protective performance of the enclosure for electronic and electrical products, automobiles, motorcycle parts, household appliances, seals and lamps under water spraying and splashing at degree IPX3 and IPX4.



Technical Parameters:

Parameters of Spray Nozzle Outer diameter: Ф102mm, spherical diameter: SФ75.5mm, 1 hole at the center, 2 inner circles of 12 holes at 30° pitch,4 outer circles of 24 holes at 15° pitch, total 121 holes of Ф0.5mm, made of brass.
Water Flow 10L/min±5% adjustable by flow meter (flow meter is not included in this item, should be prepared by user)
Pressure 50~150Kpa, the pressure gauge measuring range: 0~0.25Mpa
Moving Shield

Made of aluminum, can be detachable

Note: the aluminum moving shield is easy to deform, pay attention during use



Structure:

This device is manufactured according IEC 60529 figure 5, with a digital flowmeter and a pressure gauge on the handle, it can achieve IPX3 / IPX4 hand-held spraying test by connecting water pipe (water pipe should be prepared by user).

It ensures that the water spraying and splashing speed reaches the standard required value by controlling the water supply flow, make the enclosure of the specimen to be splashed in all directions.

IEC 60529 Hand Held IPX3 And IPX4 Spray Nozzle With Digital Flowmeter 0IEC 60529 Hand Held IPX3 And IPX4 Spray Nozzle With Digital Flowmeter 1



Operation Steps:

IEC 60529 Hand Held IPX3 And IPX4 Spray Nozzle With Digital Flowmeter 2





Install the water flow meter, water pipe and spray nozzle as above picture shown, and then adjust the handle to open the valve to adjust the water flow to be (10 ± 5%) L / min, and check whether the pressure gauge shows the pressure in the range of 50-150KPa. If the water flow is less than 10 liters, then a booster pump should be installed, please refer to the blow picture.

IEC 60529 Hand Held IPX3 And IPX4 Spray Nozzle With Digital Flowmeter 3

Waterproof rating for IPX3 test: According to IEC60529 Figure 5, adjust the moving shield to be 30 °(moving to the fourth circle of holes counting from outside to inside).

IEC 60529 Hand Held IPX3 And IPX4 Spray Nozzle With Digital Flowmeter 4

Waterproof rating IPX4 test: Please remove the moving shield to full open to not cover any holes, in order to make the sample can be splashed in all directions.
