IEC60335-1 Ф800mm House Hold Appliance Steel Inclined Plane Button Control

MOQ: 1
Price: Customized
Standard Packaging: Plywood
Delivery Period: 30 Days
Payment Method: T/T
Supply Capacity: 20 sets per month
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate (Cost Additional)
Model Number
SN1105A
Applied Standards:
IEC60335-1 And Etc.
Control Method:
Button Control
Angle Range:
0-30° Adjustable
Rotation Mode:
Manual Or Automatic
Countertop Material:
High Quality Sprayed Steel Plate
Bearing Capacity:
100kg
Test Station:
Single
Warranty Time:
One Year
Highlight:

House Hold Appliance Steel Inclined Plane

,

Steel Inclined Plane Button Control

Product Description



IEC60335-1 Ф800mm House Hold Appliance Steel Inclined Plane Button Control



Standards & Clauses:



This inclined plane complies with the standard requirements of IEC60335-1 Clause 20.1, IEC 60950: 2013 clause 4.1, IEC 60065:2014 clause 19.1, etc.



Samples and Restrictions:



Household appliances such as microwave ovens, ovens, induction cookers, refrigerators, washing machines

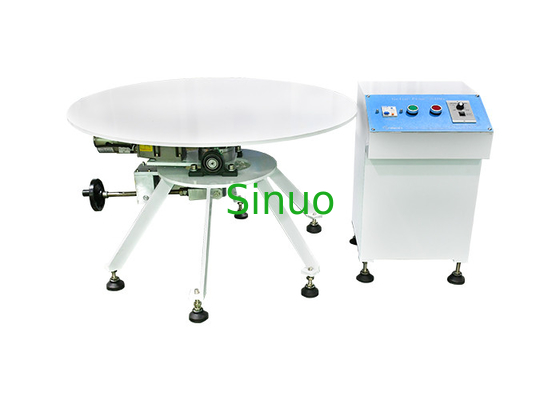

IEC60335-1 Ф800mm House Hold Appliance Steel Inclined Plane Button Control 0

Technical parameters:



Model

Surface

Diameter

Surface

Material

Angle

Range

Load

Capacity

 Rotation Method

Rotation

Speed

 Remark
SN1105A 800mm High-quality spray steel plate

0-30°

Stepless

Adjustable

 80kg

Electric

 1r/min Round table




Application:



It simulates a surface such as the floor or table, on where the appliances intended to be used, shall have adequate stability.



Test Principle:



The appliance, not connected to the supply mains, is placed in any normal position of use on the inclined plane at a certain angle to the horizontal. The countertop of the inclined plane is rotated by rotating mechanism, so as to verify the sample’s stability.



Structure:



The device consists of a countertop and an angle adjustment device

Equipment dimensions: approx.: 1000 × 1000 × 800 (mm) W × D × H

Equipment weight: 150kg

IEC60335-1 Ф800mm House Hold Appliance Steel Inclined Plane Button Control 1

IEC60335-1 Ф800mm House Hold Appliance Steel Inclined Plane Button Control 2
