IEC 60529 Protection Against Spraying And Splashing Water IPX3 IPX4 Spray Nozzle

IEC 60529 Protection Against Spraying And Splashing Water IPX3 IPX4 Spray Nozzle
IEC 60529 Protection Against Spraying And Splashing Water IPX3 IPX4 Spray Nozzle IEC 60529 Protection Against Spraying And Splashing Water IPX3 IPX4 Spray Nozzle IEC 60529 Protection Against Spraying And Splashing Water IPX3 IPX4 Spray Nozzle IEC 60529 Protection Against Spraying And Splashing Water IPX3 IPX4 Spray Nozzle

Large Image :  IEC 60529 Protection Against Spraying And Splashing Water IPX3 IPX4 Spray Nozzle

Product Details:
Place of Origin: China
Brand Name: Sinuo
Certification: Calibration Certificate (Cost Additional)
Model Number: SN446
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Carton Box
Delivery Time: 7 Days
Payment Terms: T/T
Supply Ability: 30 Sets Per Month
Detailed Product Description
Applied Standards: IEC 60529 And Etc. Spherical Diameter: SФ75.5mm
Holes Amount: 121 Holes Holes Diameter: Ф0.5mm
Water Flow: 10L/min±5% Pressure Range: 50~150Kpa
IP Grade: IPX3 IPX4 Warranty Time: One Year
High Light:

IPX4 Spray Nozzle

,

IPX3 Spray Nozzle

,

IEC 60529 Spray Nozzle



IEC 60529 Protection Against Spraying And Splashing Water IPX3 IPX4 Spray Nozzle



Standards compliant:

IEC 60529-2013 “Degrees of protection provided by enclosure (IP code)” IPX3 and IPX4, Figure 5
IEC 60598-1-2017 “Luminaries-Part1: General requirements and tests”

The spray nozzle is used to verify the protective performance of the enclosure for electronic and electrical products, automobiles, motorcycle parts, household appliances, seals and lamps under water spraying and splashing at degree IPX3 and IPX4. The water pressure can be adjusted using the flow control handle on the device to give the required flow rate. The pressure can be seen on the gauge which is conveniently positioned by the nozzle. A movable shield can be put down over a portion of the nozzle for IPX3 or moved out of the spray pattern for IPX4.


Technical parameters:

Parameters of Spray Nozzle Outer diameter: Ф102mm, spherical diameter: SФ75.5mm, 1 hole at the center, 2 inner circles of 12 holes at 30° pitch,4 outer circles of 24 holes at 15° pitch, total 121 holes of Ф0.5mm, made of brass.
Water Flow 10L/min±5% adjustable by flow meter (flow meter is not included in this item, should be prepared by user)
Pressure 50~150Kpa, the pressure gauge measuring range: 0~0.25Mpa
Moving Shield

Made of aluminum, can be detachable

Note: the aluminum moving shield is easy to deform, pay attention during use





Structure:

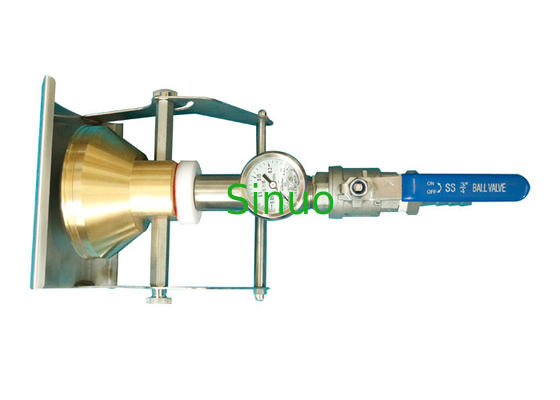

This device is manufactured according IEC 60529 figure 5, it can achieve IPX3 / IPX4 hand-held spraying test by connecting water pipe.

It eEnsure that the water spraying and splashing speed reaches the standard required value by controlling the water supply flow, make the enclosure of the specimen to be splashed in all directions.

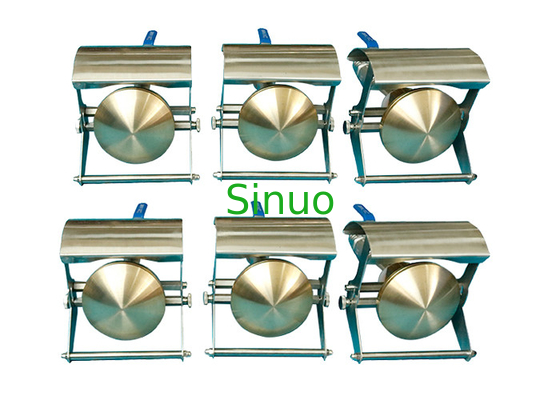

IEC 60529 Protection Against Spraying And Splashing Water IPX3 IPX4 Spray Nozzle 0







Normally we suggest to adopt the automatic control for IPX3/4 testing, if client has limit budget, the following easy installation for IPX3 and IPX4 testing is for reference:

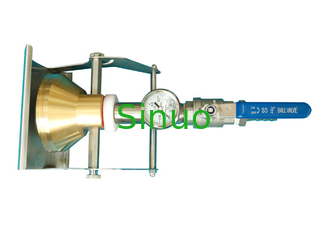

IEC 60529 Protection Against Spraying And Splashing Water IPX3 IPX4 Spray Nozzle 1
