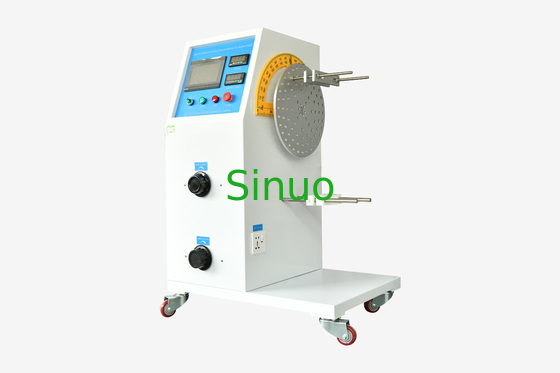

IEC60335 Household Appliances Cable Flexing And Swivel Connection Rotation Test Equipment
Product information:
The power cord flexibility test equipment is designed and manufactured according to standard requirements of IEC 60335-1 clause 25.14 figure8, IEC 60335-2-23 clause 23.3 flexing test for conductors that are flexed when stored and clause 11.101 swivel connection sliding contacts temperature rise test. It is used to check that the supply cord of the small household appliances (Such as coffee pot / electric iron) and similar appliances is adequately protected against excessive flexing where it enters the appliance.
The test principle is to fix one end of the sample, and the other end to drive the sample to rotate through the motor. At the same time, apply the load with the rated current of 1.25 times rated voltage to the sample, hang up a 1N weight on the flexible cord of the sample to rotate the electrified sample at a certain speed. The turntable rotates 20 turns in the forward direction and then 20 turns in the reverse direction at a speed of 50 r/min, and automatically stops when the number of tests is reached, and the temperature rise of the slider is measured at the same time.
This equipment adopts floor-standing structure. By PLC control and touch screen operation, the test times, test rate and bending angle can be pre-set, and the built-in 5kW load output is suitable for most hair curlers, hair irons and household appliances test requirements.
Technical parameters:
| Flexing angle | Forward /reverse direction: 0-360°, preset on the touch screen |
| Flexing speed | 0～60rpm, preset on the touch screen |
| Test cycles | 0-999999, can be preset |
| Input power | AC220V, 50Hz |
| Control method | PLC programmable control |
| Drive mode | Servo motor |
| Operation | 7 inches touch screen intelligent control |
| Configuration | 0~50KW pressure regulator |
| Current | 0-15A, adjustable |
| Max. bearing weight | 10kg |
| Station | One |
| Sample clamp | Universal clamp (1 set) |
| Standard load weight | 1N (1 PC) |
Structure
Maintenance
Before testing, please check the components of the fixture is loose or not.
Before testing, please check whether the load socket is damaged or not.
Before testing, please check whether the manipulator swivel smooth by operate the manually speed.
Under non-work state, please take off the test samples and weights, turn off the load power supply and external power supply.
Please do not place any heavy and sharp objects on the equipment.
Please do not thrust the machine components, in order to avoid position offsetting.
Please keep away from liquid, in order to avoid electrical circuit short.
Special function
【Single/Double sieded】selected button: Operator can select one side which is with 0° as the center line to do reciprocating flexing (Single-Sided swivel) in this system, and the reciprocating swing range will not exceed the center line. Operator can also select each half flexing angle of the left and right direction around the center line at 0°, that is, flex around the center line (reciprocating) (Double -Sided swivel). The default is double-sided flexing. Press the button for single-sided swivel. This button can be used in conjunction with the [Left and Right Swivel] button to select the direction and single-side and double-side swivel at the same time. Special note: Before switching of these buttons, operator must make sure that the turntable is at the starting position by pressing [Homing] button, and the counts are cleared by pressing [Count Cleared] button, then the switching of these buttons will be effective. The purpose is to avoid changing the direction of rotation while one direction is being tested.
|
|
