IEC 60335 Single Station Constant Pressure Water Supply Test Device 2.5MPa

MOQ: 1
Price: Customized
Standard Packaging: Plywood
Delivery Period: 30 Days
Payment Method: L/C, , T/T, Western Union, MoneyGram
Supply Capacity: 1 set per month
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate (Cost Additional)
Model Number
SN1125
Standard Applied:
IEC 60335-2-21, Etc.
Test Station:
1 Station
Hydraulic Pressure:
0.5-2.5MPa
Boost Rate:
0.13MPa/s
Peak Record:
Air Pressure
Test Medium:
Clean Water
Water Temperature Range:
10-60℃
Water Tank Volume:
>10L
Brand:
Sinuo
Warranty:
1 Year
Highlight:

IEC 60335 Water Supply Test Device

,

Single Station Water Supply Test Device

,

2.5MPa Water Supply Test Device

Product Description



IEC 60335 Single Station Constant Pressure Water Supply Test Device 2.5MPa



Product overview:

This test apparatus is required by IEC 60335-2-35:2002, IEC 60335-2-21:1997,MOD, IEC 60335-2-7:2008(Ed7.0),MOD,and etc.



It is used for various pressure-bearing products such as valves, water heaters, treated fabrics, etc. to carry out water pressure resistance, static pressure, blasting performance test and water sealing performance test.



Technical Parameters:

StationSingle station
Electrical control modePLC control, computer operation
Drive wayBooster pump drive
The test mediumClean water
Test pressure0.5-2.5 MPa
Pressure rise rate0-0.3mpa /s adjustable, default 0.13mpa /s
Pressure holding applicationCan be set to 0-999999 - s
Water tank heating functionOptional (0-80°C)
The test processManual loading and unloading test, automatic detection process
Equipment size and weightL*W*H=1870*720*1300, weight about 230KG
Using the environmentAtmospheric pressure 80 ~ 106kpa; Ambient temperature 5 ~ 40°C; Relative humidity (20 ~ 80) %RH; Use place: no violent shaking, vibration, no electromagnetic interference, no dust, no explosive and corrosive gas, good heat dissipation

The test principle
The use of booster pump pressurization, through the pressure sensor connected to the pipeline monitoring and real-time feedback of the pressure value, the control team to control the electric valve, pressure regulating valve and other components, so that the water pressure and pressure holding time in the pipeline meet the standard requirements.

The structure:

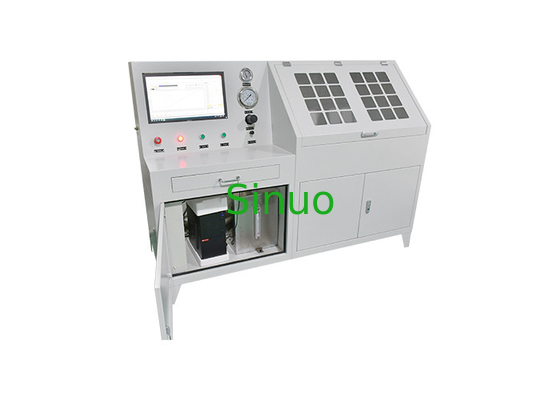

Box type structure. The equipment adopts computer control, can print data and pressure curve display, can set test pressure, constant pressure time, pressure rate, etc.; Pneumatic hydraulic booster pump and pressure control device with stable performance, easy operation, beautiful appearance, set a number of domestic and foreign similar products advantages, is the domestic major measurement institutions and laboratories of the first choice.
IEC 60335 Single Station Constant Pressure Water Supply Test Device 2.5MPa 0IEC 60335 Single Station Constant Pressure Water Supply Test Device 2.5MPa 1
