| MOQ: | 1 |
| Price: | Customized |
| Standard Packaging: | Plywood |
| Delivery Period: | 30 Days |
| Payment Method: | L/C, , T/T, Western Union, MoneyGram |
| Supply Capacity: | 20 sets per month |
IEC 60598-1 Led Test Equipment Screwed Glands Torque Screwdriver 1.5-30N.M
Standards & Clauses:
IEC 60598-1 “Luminaries-Part1: General requirements and tests” clause 4.12.5
Product overview:
The screwed glands tester match the requirements of IEC60598-1:2014 4.12.5, for assessing the reliability of fixation of objects secured with metal and plastic threaded glands, by applying a certain torque to the gland according to the standard, and neither the gland nor its connecting parts can be damaged.
Samples and Restrictions:
Glands of screw thread ≦ M33
Application:
Test the mechanical strength of the screwed glands
Test Principle:

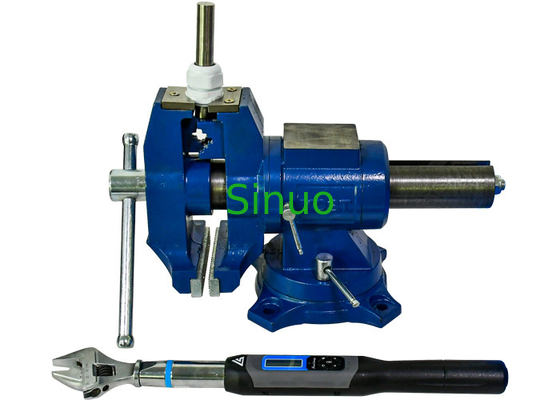

Screwed gland is fitted with a cylindrical metal rod, one end is fixed, then test torque is applied on the other end by the spanner.
Structure:
Manual testing, simple and convenient
Technical Parameters:
| Applied torque range | 1.5-30N.m |
| Way of applying torque | Torque wrench |
| Gland fixing method | Vise or adjustable wrench |
| Cylindrical metal rod | One of each Ф5mm, Ф7mm, Ф9 mm, Ф10mm, Ф12 mm, Ф14mm, Ф16 mm, Ф18 mm, Ф20 mm, Ф22 mm, Ф25 mm, Ф30 mm, Ф32 mm, Ф40mm |
