IEC60335 Single Station Negative Pressure Appliances Vacuum Pressure Testing System

IEC60335 Negative Pressure Vacuum Pressure Test System For Electrical Skin Stimulators

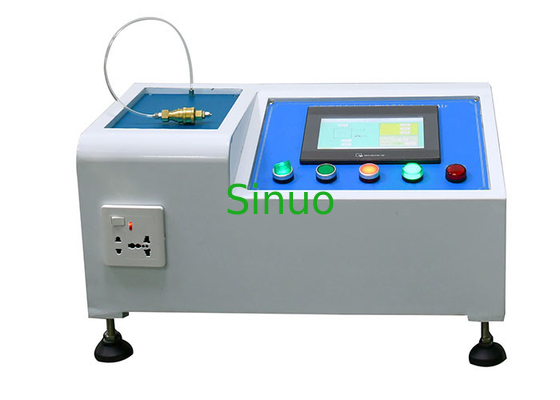

Product overview:

This Negative Pressure Vacuum Pressure Test System for beauty care appliances conforms to IEC 60335-2-113: 2016. It is suitable for verifying the outlet air vacuum pressure of appliances with vacuum or negative pressure function in electrical skin stimulators, and it shall not be greater than the vacuum pressure required by the standard to protect the human body from damage.

Technical Parameters:

Test station	Single station
Electrical control method	PLC intelligent integrated control, 7-inch color man-machine touch interface operation
Vacuum box size	Ф50×100mm
Vacuum pressure reading method	The real-time data is read by the differential pressure sensor and displayed on the touch screen, then the system automatically makes a qualified judgment after reaching a stable
Sample connection method	Manually sealed joint connection, two standard configurations, switchable
Operation process	The vacuum pressure parameter is preset to 75.0kPa, the sample suction port is connected with a sealed joint, and the sample power is turned on. When the fluctuation range of the vacuum degree is less than the set value, the system automatically makes a qualified or unqualified judgment, the corresponding indicator light is on. Then the vacuum box is filled with the atmosphere automatically, the sample is removed from the test equipment, the test is completed.
System configuration	Electronic control part: Mitsubishi PLC with module, Weinview7-inch color touch screen, Omron relay, Chint switch, etc. Pneumatic part: Meacon controlled differential pressure sensor, Airtac solenoid valve, pipeline, joint, etc. Mechanical part: high tightness stainless steel vacuum box, integrated machine
Test principle diagram

Operation process

The vacuum pressure parameter is preset to 75.0kPa, the sample suction port is connected with a sealed joint, and the sample power is turned on. When the fluctuation range of the vacuum degree is less than the set value, the system automatically makes a qualified or unqualified judgment, the corresponding indicator light is on. Then the vacuum box is filled with the atmosphere automatically, the sample is removed from the test equipment, the test is completed.
