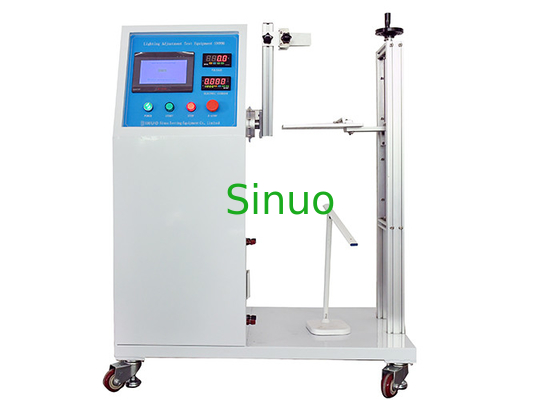

IEC 60598-1 Clause 4.14.3 LED Lighting Adjustment Test Equipment
| Applied standard: | IEC 60598-1 | Clause: | Clause 4.14.3. |
| Bending angle: | 0-360°, Can Be Preset | Bending rate: | 0～10rpm, Can Be Preset |
| Electrical control: | PLC Programmable Control | Drive method: | Servo Motor |
| Test Cycles: | 1~999999 Can Be Preset | Rotation Center Height: | 1200mm |
| High Light: | IEC 60598-1 Switch Life Tester,Clause 4.14.3 Switch Life Tester,PLC Switch Life Tester |
||
IEC 60598-1 Clause 4.14.3 LED Lighting Adjustment Test Equipment
Product Information:
This lighting adjustment test equipment matches the requirements of clause 4.14.3 of IEC 60598-1, mainly used for the lamp adjustment device’s torsion, and bending test of the table lamps, floor lamps and the lamps which are for professional use (such as a plotter lamps).
Equipment Structure
The test equipment is coming with integrated PLC & touch screen, motor drive bending mechanism, sample installation platform. The bending angles, test speed and test cycle can be set on touch screen. Once the test is completed or failed, the test equipment will give out signal.
Technical Parameters:
| Power Supply | AC220V, 50HZ |
| Bending /Rotation Angle | 0~360° (or 0~±180°) can be preset on touch screen |
| Test Speed | 0 to 60 times / min, can be preset |
| Test Cycles | 1~999999 can be preset |
| Electrical Control | PLC & 7” touch screen |
| Drive Mode | Stepper motor |
| Operation Mode | Intelligent touch screen control (7 inches) |
| Rotation Center Height | 1200mm |
| Platform Liftable Stroke | 0-1000mm, manually adjustable by rotating the hand wheel |
| Maximum Radius of Gyration of the Rotating Fixture | R500mm |
| Test Station | One station |
