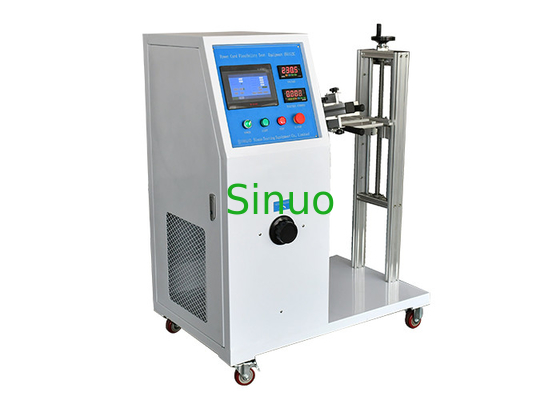

IEC 60335-1 Clause 23.3 Internal Wiring Flexing Test Equipment

Basic Properties
Place of Origin: China
Brand Name: Sinuo
Certification: Calibration Certificate (Cost Additional)
Model Number: SN1112C
Trading Properties
Minimum Order Quantity: 1
Price: Negotiable
Payment Terms: L/C, T/T
Supply Ability: 20 Sets Per Month
Tags

electrical test equipment

electrical appliance tester

IEC test equipment
Specifications
Applied standard: IEC 60335-1 Applied clause: 23.3
Test Speed: 0 To 60 Times / Min Test Cycles: 1~999999
Drive Mode: Stepper Motor Working Station: One
High Light:

Internal Wiring Flexing Test Equipment

,

Clause 23.3 Wiring Flexing Test Equipment

,

IEC 60335-1 Wiring Flexing Test Equipment
Product Description



IEC 60335-1 Clause 23.3 Internal Wiring Flexing Test Equipment



Product Information:

The Internal Wiring Flexing Test Equipment is designed and manufactured according to the standard requirements of Clause 23.3 of IEC 60335-1 Household and similar electrical appliances – Safety – Part 1: General requirements.

It is used to conduct flexing resistance test on the electrical connections and internal wires of different parts of the appliance that can move with each other in normal use or during user maintenance.



Technical arameters:



Applied standard IEC 60335-1
Applied clause 23.3
Power Supply AC220V, 50HZ
Angle of Bending /Rotation 0~360° (or 0~±180°), it can be preset on touch screen
Test Speed 0 to 60 times / min, it can be preset
Test Cycles 1~999999, it can be preset
Electrical Control PLC & 7” touch screen
Drive Method Stepper motor
Operation Mode Intelligent touch screen control (7 inches)
Platform Liftable Stroke 0-1000mm, manually adjustable by rotating the hand wheel
Test Station One





IEC 60335-1 Clause 23.3 Internal Wiring Flexing Test Equipment



IEC 60335-1 Clause 23.3 Internal Wiring Flexing Test Equipment
