| MOQ: | 1 |
| Price: | Negotiable |
| Standard Packaging: | Standard Exporting Boxed |
| Delivery Period: | 15 Days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 60 Sets Per Month |

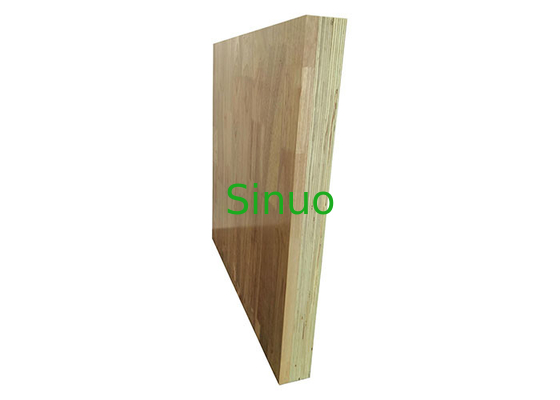

IEC 60065-1 Clause 12.1.5 Horizontal Surface for Drop Test
Product Information:
The horizontal surface conforms to the standard requirements of IEC 60065-1:2014 Clause 12.1.5, IEC 62368-1:2018 Annex T.7, IEC 60950-1: 2013 Clause 4.2.6 and etc.
It is used to the portable apparatus having a mass of 7 kg or less which are subjected to a drop test. A sample of the complete apparatus is subjected to three impacts that result from being dropped through a distance of 1 m onto a horizontal surface in positions likely to produce the most adverse results.
The horizontal surface consists of hardwood at least 13mm thick, mounted on two layers of plywood each 19mm to 20mm thick, all supported on a concrete or equivalent non-resilient floor.
For each drop, the test sample shall strike the surface in a different position. When applicable, the sample is to be dropped with the batteries specified by the manufacturer.
Technical Parameters:
| Applied standard | IEC 60065-1 |
| Applied clause | 12.1.5 |
| Material |
Hardwood: 13 mm thick; Two layers of plywood: thick range is 19 mm to 20 mm |
| The height of drop | 1 m |
| The test mass | ≤7 kg |
| Floor requirement | Concrete or equivalent non-resilient floor |
|
|
