IEC 62368-1 Annex T10 Centre Punch For Glass Fragmantation Test

Name: IEC 62368-1 Annex T10 Centre Punch For Glass Fragmantation Test
Brand: Sinuo
SKU: SN2210-28
Price: 1.00 USD
Availability: InStock
Rating: 4.9 (195 reviews)

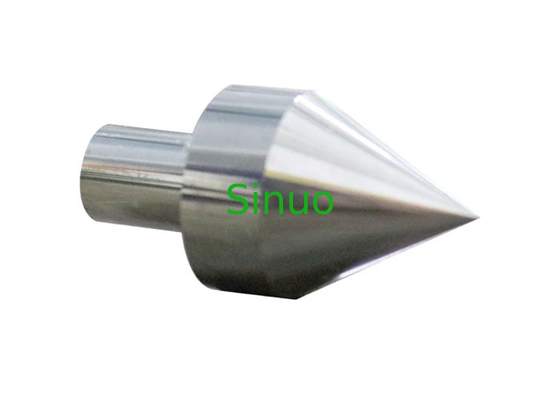

Large Image : IEC 62368-1 Annex T10 Centre Punch For Glass Fragmantation Test

Product Details:

Place of Origin:	China
Brand Name:	Sinuo
Certification:	Calibration Certificate (Cost Additional)
Model Number:	SN2210-28

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Carton Box
Delivery Time:	3~5 Days
Payment Terms:	L/C, T/T
Supply Ability:	100 PCS Per Month

Contact Now

Detailed Product Description

Applied Standard:	IEC 62368-1	Applied Clause:	Annex T10
Tip Angle:	Maximum: 5 Mins	Mass:	60 ° ± 2 °
Tip Shape:	Conical	Material:	Tungsten Carbide
High Light:	Annex T10 Centre Punch , IEC 62368-1 Centre Punch , Glass Fragmantation Test Centre Punch

IEC 62368-1 Annex T10 Centre Punch for Glass Fragmantation Test

Product Information:

The Centre Punch conforms to the standard requirements of IEC 62368-1:2018 Annex T10, IEC 60598-2-3 clause3.6.5, IEC 60335-2-6:22.120, IEC 60335-2-25:22.119; IEC 60335-2-89:22.104 and etc.

It is used to test accessible glass panels of household appliances, electrical accessories, lamps, etc.

The test sample is supported over its whole area and precautions shall be taken to ensure that particles will not be scattered upon fragmentation.

Technical Parameters:

Applied standard	IEC 62368-1
Applied clause	Annex T10
Mass	75g ± 5g
Tip angle	60 ° ± 2 °
Tip shape	Conical
Material	Tungsten carbide

Test Process:

The sample under test is broken by means of a test punch having a head with a mass of 75 g ±5 g and a conical tungsten carbide tip with an angle of 60°±2°. The punch shall be positioned approximately 13 mm in from the longest edge of the glass at the midpoint of that edge. The punch is them hit by a hammer so that the glass breaks.

IEC 62368-1 Annex T10 Centre Punch For Glass Fragmantation Test 0
