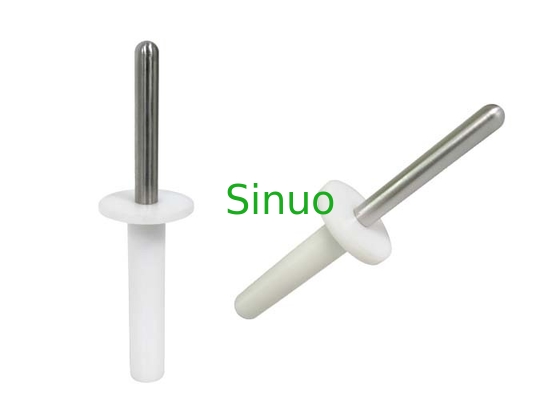

IEC 62368-1 Clause V.1.4 Figure V.3 Blunt Probe For Plugs Jacks And Connectors

IEC 62368-1 Clause V.1.4 Figure V.3 Blunt Probe For Plugs Jacks And Connectors
IEC 62368-1 Clause V.1.4 Figure V.3 Blunt Probe For Plugs Jacks And Connectors IEC 62368-1 Clause V.1.4 Figure V.3 Blunt Probe For Plugs Jacks And Connectors IEC 62368-1 Clause V.1.4 Figure V.3 Blunt Probe For Plugs Jacks And Connectors IEC 62368-1 Clause V.1.4 Figure V.3 Blunt Probe For Plugs Jacks And Connectors

Large Image :  IEC 62368-1 Clause V.1.4 Figure V.3 Blunt Probe For Plugs Jacks And Connectors

Product Details:
Place of Origin: China
Brand Name: Sinuo
Certification: Calibration Certificate (Cost Additional)
Model Number: SN2210-23
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton Box
Delivery Time: 3~5 Days
Payment Terms: L/C, T/T
Supply Ability: 100 PCS Per Month
Detailed Product Description
Applied Standard: IEC 62368-1 Applied Clause: V.1.4 And Figure V.3
Probe Length: 80±0.2 Mm End Radius: R6+0.05 0 Mm
Probe Diameter: Φ12+0.05 0 Mm Baffle Diameter Of The Handle: 50±0.2 Mm
Handle Material: Nylon Probe Material: Stainless Steel
High Light:

Figure V.3 Blunt Probe

,

IEC 62368-1 Blunt Probe

,

Clause V.1.4 Blunt Probe



IEC 62368-1 Clause V.1.4 and Figure V.3 Blunt Probe for Plugs Jacks and Connectors





Product overview:

Standard:IEC 62368-1:2018 clause 5.3.2, 5.4.10, V.1.4 and figure V.3, IEC60950 figure 2C, IEC60065 figure B1, IEC62151 figure 3 and UL6500 figure B.1.

Application:It is used for the bare parts of TNV circuits of information technology equipment to see whether they have sufficient protection.

Test sample:Information technology equipment.

Feature:Nylon handle + stainless steel probe.



Parameters:

Applied standard IEC 62368-1
Applied clause V.1.4 and figure V.3
Probe material Stainless steel
Handle material Nylon
Probe length 80±0.2 mm
End radius R6+0.05 0 mm
Probe diameter Φ12+0.05 0 mm
Baffle diameter of the handle 50±0.2 mm


IEC 62368-1 Clause V.1.4 Figure V.3 Blunt Probe For Plugs Jacks And Connectors 0
