| Applied Standard: | IEC 62368-1 | Clause: | 5.42 |
|---|---|---|---|
| DC High Voltage: | Max. 12.5kV | Output Voltage: | 12.5kV (Max)±5％ |
| Impulse Wavefront Time: | 1.2 µs ± 30 % | Half Value Of After Wave Time: | 50 µs ± 20 % |
| High Light: | Clause 5.4.2 Impulse Voltages Generator,IEC 62368-1 Impulse Voltages Generator,12.5kV Impulse Voltages Generator |
||

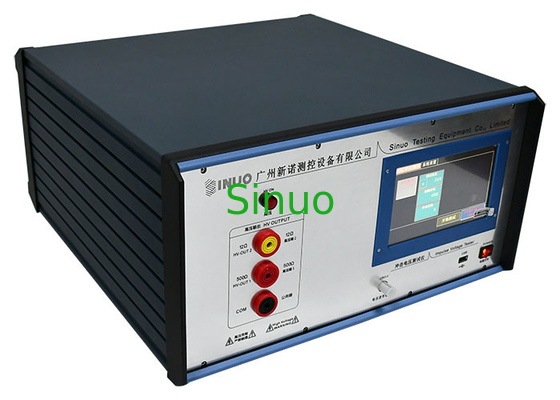

IEC 62368-1 Clause 5.4.2 Impulse Voltages Generator 2 Internal Resistances 12.5KV
Product information:
Standard: Conform to IEC 62368-1:2018 clause 5.4.2,5.5.8 and Annex D, circuit 1 and circuit 2 of Table D.1, Annex G.10, etc., IEC 60950-1:2013 clause 2.10.3.9, 5.2, reference 2 of table N.1, IEC 60950-1:2013 clause 6.2.2.1 and 7.4.3 reference 1 of table N.1, IEC60065:2014 clause 10.2, 13.3.4 a), and IEC 60065:2014 clause 13.3.4 b), 14.2, IEC60335-1 clause 14, and etc.
Application: It is used to detect the transient over voltage of the components and the electrical clearance and the creepage distance.
Test sample: Household appliance, Audio, video and similar electronic apparatus.
Feature: The sample breakdown will produce a spark and acoustic, instrument peak voltage than the no-load voltage is decreased substantially (close to zero), when applying the same voltage in the next test, it will also show the above phenomenon.
Technical parameters:
| Applied Standard | IEC 62368-1 |
| Clause | 5.42 |
| DC high voltage | Max. 12.5kV |
| Impulse voltage wave |
Impulse wavefront time: 1.2 µs ± 30 %; Half value of after wave time: 50 µs ± 20 % |
| Instrument internal resistance | 12Ω ± 10% |
| Internal resistance converter box | 500Ω - 10% optional |
| Peak voltage: 300 V~ 12,500V |
0-12500V, Low: 300 V~ 2,500V; High: 2,500 V~ 12,500V |
| Impact interval time | 5 ~ 99s |
| Impact cycles | 1 ~ 9999 |
| Polarity | positive and negative |
| Working power source | Rated voltage: ~ 220V±10%, 50Hz |
| Dimension | 430mm×180mm×480mm |
| Weight | 20 KG |
