| MOQ: | 1 |
| Price: | Negotiable |
| Standard Packaging: | Carton Box |
| Delivery Period: | 3~5 Days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 100 PCS Per Month |

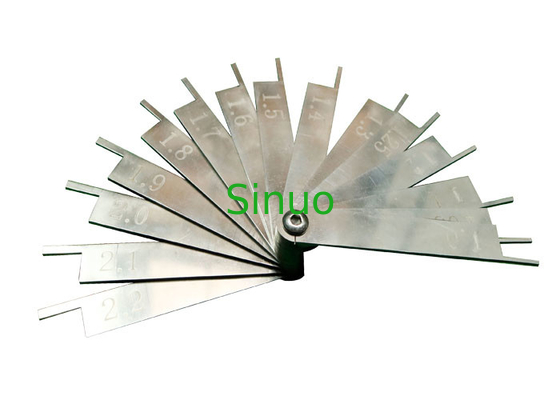

IEC 62368-1 Clause 5.4.2 Measuring Gauge Creepage Distance Test Cards
Product information:
These test gauges conform to IEC 62368-1 clause 5.4.1.10, IEC 60884-1 clause 25.2, 25.3, figure 37, IEC 60669-1 clause 21.3 and 21.4 figure 19, etc. They are used to determine the shortest path between two conductive parts, or between a conductive part and the bounding surface of the equipment, measured along the surface of the insulation, with specifications made according to the requirements.
Technical parameters:
| Model No. | Size Specification |
| SN2134 |
1.0mm/1.05mm/1.1mm/1.2mm/1.25mm/1.3mm/1.4mm/1.5mm/1.6mm/1.7mm/1.8mm/1.9mm/2.0mm/2.1mm /2.2mm /2.4mm /2.5mm/2.8mm/3.2mm/3.6mm/4.0mm/4.2mm/4.5mm/5.0mm/5.6mm/6.3mm/7.1mm/8.0mm/9.0mm/10.0mm Total 30 creepage distance gauges |
Video
Video
|
|
