IEC 62368-1 Clause 5.4.9.1 Dielectric Strength Test Instrument
| Applied Standard: | IEC 62368-1 | Clause: | 5.4.9.1， Figure 29 |
| Application: | Insulation Material | Metal Bar: | Ф5±0.1mm,100g ; Ф6.4mm,50g |
| Applicable: | Ф5-100 AndФ6.4-50 | Test Principle: | Standard Operation |
| High Light: | Dielectric Strength Test Instrument,IEC 60950-1 Strength Test Instrument,Clause 2.10.8.3 Strength Test Instrument |
||

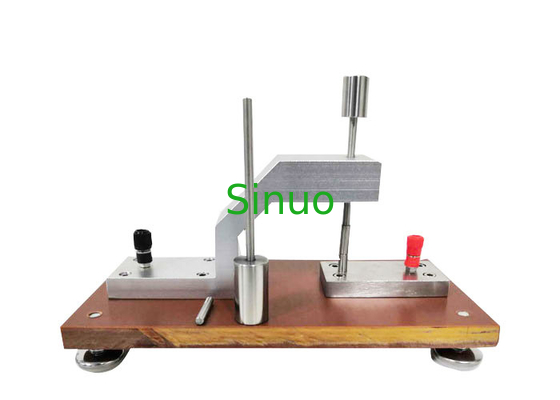

IEC 62368-1 Clause 5.4.9.1 Dielectric Strength Test Instrument
Product information:
The Dielectric Strength Test Instrument confirms to the standard of IEC 62368-1:2018 clause 5.4.9.1 figure 29, IEC60065:2014 clause 10.4.2 and figure 6, IEC60950-1:2013 clause 5.2.2 and etc.
Application:It is used to test the dielectric strength of the insulating material.
Test sample:Insulating material.
Parameters:
The clamp is applicable of two kinds: Ф5-100 andФ6.4-50. For different testing samples, different metal bar and testing bar are adopted. This testing apparatus is equipped with two kinds of metal bar. They are separately 100g and 50g.
