IEC60598-1 Clause 4.13.6 Tumbling Barrel Free Fall Test Machine

IEC60598-1 Clause 4.13.6 Tumbling Barrel Free Fall Test Machine
IEC60598-1 Clause 4.13.6 Tumbling Barrel Free Fall Test Machine IEC60598-1 Clause 4.13.6 Tumbling Barrel Free Fall Test Machine IEC60598-1 Clause 4.13.6 Tumbling Barrel Free Fall Test Machine IEC60598-1 Clause 4.13.6 Tumbling Barrel Free Fall Test Machine

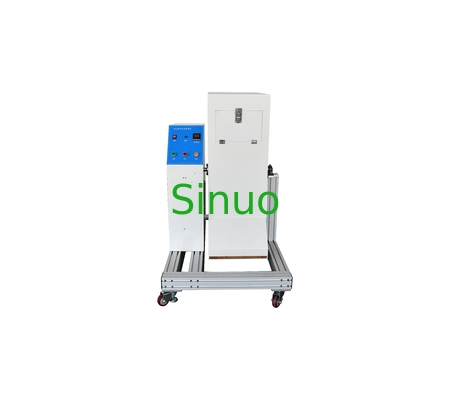

Large Image :  IEC60598-1 Clause 4.13.6 Tumbling Barrel Free Fall Test Machine

Product Details:
Place of Origin: China
Brand Name: Sinuo
Certification: Calibration Certificate (Cost Additional)
Model Number: SN2123C
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Standard Exporting Plywood Case
Delivery Time: 30 Days
Payment Terms: L/C, T/T
Supply Ability: 20 Sets Per Month
Detailed Product Description
Standard: IEC60598-1 Clause: 4.13.6
Test Station: Can Be Customized Electrical Control Method: Button Control
Test Times: 0-9999 Times, Can Be Preset Power Supply: AC220V±10%/50-60Hz Or Match Client's Local Power Supply Requirements
Rotate Speed: 5 Rpm Drop Height: 500mm Can Be Customized.
High Light:

IEC 60598-1 Free Fall Test Machine

,

Clause 4.13.6 Free Fall Test Machine

,

Tumbling Barrel Free Fall Test Machine



IEC60598-1 Clause 4.13.6 Tumbling Barrel Free Fall Test Machine



Standard & Clause:

The Tumbling Barrel Free Fall Test Machine conforms to the standard of IEC60598-1: clause 4.13.6; IEC60884-1: clause 24.2; IEC60068-2-32;  IEC60320-1clause 23.2; DIN VDE 0620-1; and BS1363-1-2012; and customer customized requirements.



Application:

This machine is used to perform free fall test for plugs and sockets, plug-in ballasts/transformers and power sockets installed lamps, non-rewireable connectors.



Test Principle:

The tumbling barrel is driven to rotate by the motor, then the specimen repeatedly free falls onto the specified surface at a specified height.



Technical Parameters:

Test station Single station, double stations can be customized
Electrical control method Button Control
Rotate speed 5rpm
Drop rate 10 times per min
Material The front and back are transparent plastic plates, and the upper, lower and sides are 10—19mm thick plywood plates.
Test times 0~9999 times, can be preset.
Drop height 500mm can be customized.
Application Plug and socket and similar electrical accessories
Power supply 220V,50Hz
