| Temperature Range: | 20℃～+60℃ | Temperature Uniformity: | ±2℃ |
|---|---|---|---|
| Temperature Fluctuation: | ±1°C Or Less | Test Power: | 5 KW |
| Test Rack: | 2 Layers | Test Specimen: | Ceiling Lamps, Wall Lamps, Recessed Lamps And Etc. |
| High Light: | 5KW Led Light Testing Equipment,IEC 60598 Led Light Testing Equipment |
||

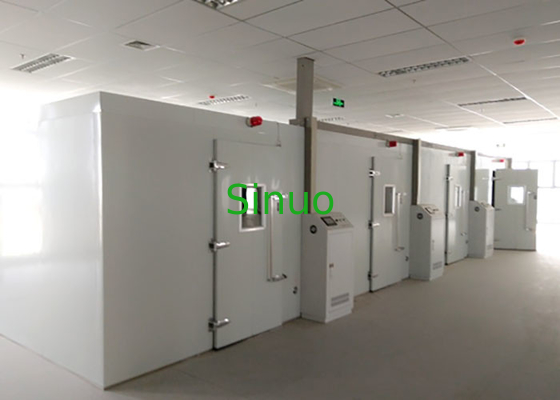

IEC60598 5 KW Large Led Lamp Testing Equipment Temperature Aging Room
Overview:
a) Inner chamber material: clean and thick flame-retardant color steel plate (the inner wall needs to be painted black)
b) Outer chamber material: sprayed color steel plate
c) Insulation material: thermal mineral wool
d) Heater: good heat dissipation
e) Refrigeration system: France TECUMSEH brand refrigeration compressor
f) Provide high temperature / heat / corrosion resistant black floor
The Large Led Lamp Testing Equipment Temperature Aging Room meets the requirements of Section 12.3 of the Chapter 12 “Endurance Test” and Annex K “Temperature Measurement” of IEC60598-1:2014.
Features:
Casters are mounted on the bottom of the luminaire test installation workbench. It is easy for installation, and can meet the installation requirements of fixed lamps (ceiling lamps, wall lamps), recessed lamps, table lamps, street lamps and other lamps. There are 2 layers on the installation workbench, overall size is about 1800mm * 1000mm * 1400 mm (length x width x height) (the first layer is about 400mm high, the second layer is about 1400mm high), each layer is equipped with about 10 power sockets. Each layer can be individually powered for 24 hours and 3 hours for power off.
The test system has excellent cost performance, long-term working temperature stability, high test data accuracy, and good test results. It is highly recommended by lighting manufacturers, quality and technical supervision and inspection agencies, and third-party testing laboratories.
Technical Parameters:
| Chamber Inside Dimensions |
3000 (length) mm × 2000 (width) mm × 2500 (height) mm (can be customized) |
| Temperature Range | 20℃～+60℃ (can be customized) |
| Temperature Fluctuation | ±1°C or less |
| Temperature Uniformity |
±2℃ (The test rack of the aging room is arranged with at least four temperature detectors on the same plane, and the temperature is required to be controlled at ±2 °C of the set value, and the test rack has two layers) |
| Test Time | 0～99999h, can be preset |
| Door | Single door opening, the door size is 1000×2000mm. A 50mm thick steel polyurethane plate is used. The inside of the chamber is made of stainless steel plates, the exterior of the chamber is made of colored steel plates, the surface is spray-treated, the inner insulation layer of the interlayer is made of flame-resistant polyurethane, and integrated foaming. The door seal is double-layer silicone rubber or neoprene rubber, there is a 400×400mm observation window, the observation window is double-layered hollow glass, the edge is inlaid with stainless steel frame, and the frame and glass are sealed with silicone rubber. The closed door adopts a structure that can be opened both inside and outside; |
| Test Power | Can meet the total power demand of aging lamps 5KW |
